group: N21

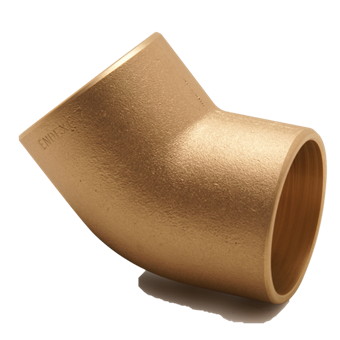

The Endex N21 is a 45 ° elbow with two end feed ends. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.
potable water
natural gas
heating
cooling
compressed air
commercial building
industry
CSN
DVGW Gas
DVGW Wasser
KIWA
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
12
dimensions
15x15x30 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050150110
item number
size
15
dimensions
18x18x35 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050058157
item number
size
28
dimensions
31x31x62 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050058195
item number
size
35
dimensions
38x38x75 mm
weight
0.1 kg
packaging
bag (1 pce)
gtin
05022050886484
item number
size
42
dimensions
45x45x90 mm
weight
0.14 kg
packaging
bag (1 pce)
gtin
05022050886507
item number
size
54
dimensions
55x55x105 mm
weight
0.21 kg
packaging
bag (1 pce)
gtin
05022050886514
item number
size
76
dimensions
80x80x120 mm
weight
0.38 kg
packaging
bag (1 pce)
gtin
05022050896452
item number
size
108
dimensions
112x112x150 mm
weight
0.73 kg
packaging
bag (1 pce)
gtin
05022050896469
item number
size
133
dimensions
139x139x300 mm
weight
2.73 kg
packaging
bag (1 pce)
gtin
05022050897114
item number
size
159
dimensions
170x250x370 mm
weight
2.84 kg
packaging
bag (1 pce)
gtin
05022050897121
item number
size
d1
l1
z1
d2
l2
z2
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
Elbow
connection type
solder
sealing
Metal sealing
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74121000
brand
Pegler
series
Endex
product type
N21
UNSPS
40172100
max operating pressure liquid
16 bar
min. medium temperature
value depends on the item view items
max medium temperature
value depends on the item view items
peak medium temperature
value depends on the item view items
label
value
label
ETIM class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Copper
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
Yes
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
item number
