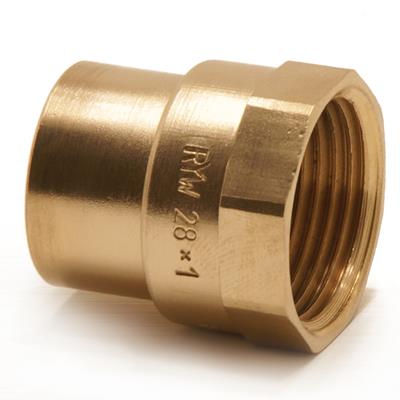

Endex Straight Connector

group: N2

The Endex N2 is a straight female connector with a end feed and female thread end. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.

  • Compact neat joints
  • Clear identification on fittings dimensions
  • Suitable for a range of applications
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CSN

CSN

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

88130

size

15xRp1/2"

dimensions

25x25x28 mm

weight

0.03 kg

packaging

bag (10 pce)

gtin

05022050055606

item number

84739d

size

15xRp3/4"

dimensions

30x30x30 mm

weight

0.05 kg

packaging

bag (10 pce)

gtin

05022050235831

item number

88129

size

15xRp3/8"

dimensions

18x21x24 mm

weight

0.02 kg

packaging

bag (10 pce)

gtin

05022050055590

item number

84741d

size

18xRp1/2"

dimensions

22x26x30 mm

weight

0.04 kg

packaging

bag (10 pce)

gtin

05022050235435

item number

88138

size

22xRp1"

dimensions

25x37x37 mm

weight

0.1 kg

packaging

bag (10 pce)

gtin

05022050055668

item number

84743d

size

22xRp1/2"

dimensions

25x25x30 mm

weight

0.04 kg

packaging

bag (10 pce)

gtin

05022050235954

item number

88137

size

22xRp3/4"

dimensions

38x38x39 mm

weight

0.05 kg

packaging

bag (10 pce)

gtin

05022050055644

item number

84749

size

28xRp1 1/4"

dimensions

45x50x50 mm

weight

0.12 kg

packaging

bag (10 pce)

gtin

05022050232083

item number

88142

size

28xRp1"

dimensions

32x38x40 mm

weight

0.08 kg

packaging

bag (10 pce)

gtin

05022050055699

item number

88143

size

35xRp1 1/4"

dimensions

39x46x48 mm

weight

0.12 kg

packaging

bag (1 pce)

gtin

05022050881434

item number

88144

size

42xRp1 1/2"

dimensions

50x55x55 mm

weight

0.17 kg

packaging

bag (1 pce)

gtin

05022050881441

item number

88145

size

54xRp2"

dimensions

60x62x67 mm

weight

0.38 kg

packaging

bag (1 pce)

gtin

05022050881458

item number

size

item number

88130

size

15xRp1/2"

item number

84739d

size

15xRp3/4"

item number

88129

size

15xRp3/8"

item number

84741d

size

18xRp1/2"

item number

88138

size

22xRp1"

item number

84743d

size

22xRp1/2"

item number

88137

size

22xRp3/4"

item number

84749

size

28xRp1 1/4"

item number

88142

size

28xRp1"

item number

88143

size

35xRp1 1/4"

item number

88144

size

42xRp1 1/2"

item number

88145

size

54xRp2"

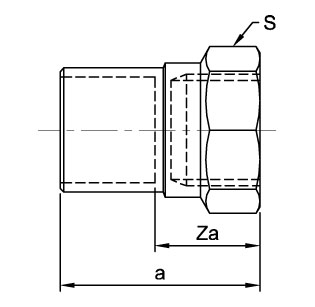

technical drawing for product

characteristics

color

copper

materials

brass (CW617N)

finishing

none

shape

straight

connection type

solder, Rc - female thread gas conical (BSPT)

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

Pegler

series

Endex

product type

N2

UNSPS

40172500

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

65 °C

peak medium temperature

image for N2

image | jpg

N2

image for Diagram

diagram | jpg

Diagram

certifications | pdf

CSN Endfeed

certifications | pdf

Endex DVGW

certifications | pdf

Pegler_Endex_Brass_Copper_WRAS

certifications | pdf

Pegler_Endex_NSF_REG4

certifications | pdf

TM65 Embodied Carbon Declaration

certifications | pdf

VSH Endex KIWA
