group: N1RDW

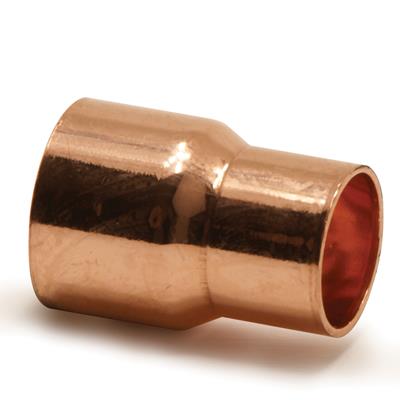

The Endex N1RDW is a reducing coupling with two end feed ends. By using Endex in your piping installation you are using a simple and cost-effective method. Endex degreased provides a suitable application for medical gas lines.
potable water
natural gas
heating
cooling
compressed air
commercial building
industry
DVGW Wasser
KIWA
WRAS
item number
size

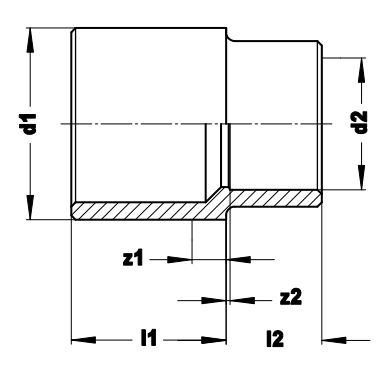

dimensions
weight
packaging
gtin
item number
size
22x15
dimensions
18x25x35 mm
weight
0.02 kg
packaging
bag (1 pce)
gtin
05022050880772
item number
size
item number
88076dwsize
22x15
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
straight
connection type
solder
sealing
Metal sealing
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74121000
brand
Pegler
series
Endex Degreased
product type
N1RDW
UNSPS
40173613
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
65 °C
peak medium temperature
110 °C
label
value
label
ETIM class
label
Material connection 1
value
Copper
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Copper
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Length
value
18mm
label
Length (imperial)
value
0.71"
label
Medium temperature (continuous)
value
-40°C - 65°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 149°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
item number
