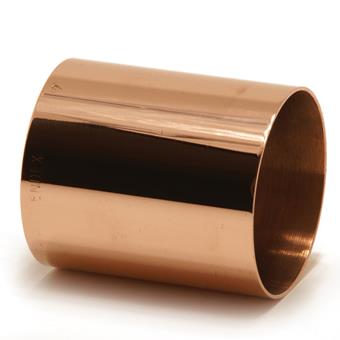

Endex Straight Coupling (Degreased and wrapped)

group: N1DW

The Endex N1DW is a straight coupling with two end feed ends. By using Endex in your piping installation you are using a simple and cost-effective method. Endex degreased provides a suitable application for medical gas lines.

  • Pre degreased
  • Provided with all relevant approvals.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

NSF

NSF

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

88015DW

size

15

d1

15.0

DN1

DN12

l1

12

z1

1

d2

15.0

DN2

DN12

l2

12

z2

1

item number

88019DW

size

22

d1

22.0

DN1

DN20

l1

16

z1

1

d2

22.0

DN2

DN20

l2

16

z2

1

item number

88022DW

size

28

d1

28.0

DN1

DN25

l1

19

z1

1

d2

28.0

DN2

DN25

l2

19

z2

1

item number

88023DW

size

35

d1

35.0

DN1

DN32

l1

24

z1

1

d2

35.0

DN2

DN32

l2

24

z2

1

item number

88026DW

size

42

d1

42.0

DN1

DN40

l1

28

z1

1

d2

42.0

DN2

DN40

l2

28

z2

1

item number

88027DW

size

54

d1

54.0

DN1

DN50

l1

33

z1

1

d2

54.0

DN2

DN50

l2

33

z2

1

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

straight

connection type

solder

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

Pegler

series

Endex Degreased

product type

N1DW

UNSPS

40172612

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

65 °C

peak medium temperature

110 °C

image for N1DW

image | jpg

N1DW

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler_Endex_NSF_REG4

certifications | pdf

VSH Endex KIWA

label

value

label

Material connection 1

value

Copper

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Copper

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

-40°C - 65°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 149°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

88015DW

carbon footprint (A-C) embodied carbon

0.05kgCO2e

data source

TM65

item number

88019DW

carbon footprint (A-C) embodied carbon

0.09kgCO2e

data source

TM65

item number

88022DW

carbon footprint (A-C) embodied carbon

0.18kgCO2e

data source

TM65

item number

88023DW

carbon footprint (A-C) embodied carbon

0.3kgCO2e

data source

TM65

item number

88026DW

carbon footprint (A-C) embodied carbon

0.42kgCO2e

data source

TM65

item number

88027DW

carbon footprint (A-C) embodied carbon

0.64kgCO2e

data source

TM65
