Endex Wallplate 90°

group: N15

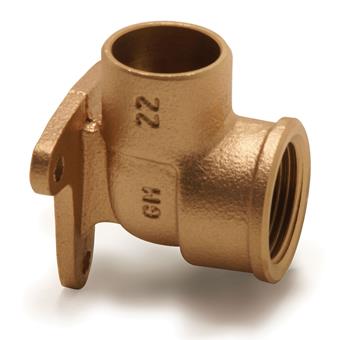

The Endex N15 is a 90° backplate elbow with a end feed and female thread end. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.

  • Compact neat joints
  • Clear identification on fittings dimensions
  • Suitable for a range of applications
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

BSI Kitemark

BSI Kitemark

CSN

CSN

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

item number

88555

size

15xRp1/2"

item number

88559

size

22xRp3/4"

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

Wall plate

connection type

solder, Rc - female thread gas conical (BSPT)

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003099 Wall plate

HS code

74122000

brand

Pegler

series

Endex

product type

N15

UNSPS

40172800

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection

value

Untreated

label

System specific

value

Yes

label

Connection

value

Soldered sleeve

label

Medium temperature (continuous)

value

-40°C - 65°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 149°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With protective cap

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
