group: N14

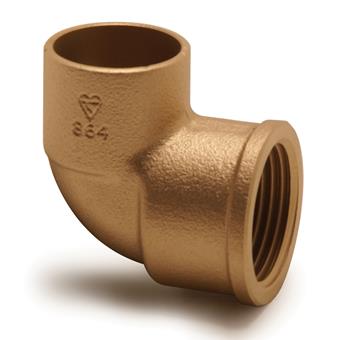

The Endex N14 is a 90° female elbow with a end feed and female thread end. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.
compressed air
heating
cooling
potable water
natural gas
industry
commercial building
DVGW Wasser
KIWA
WRAS
CSN
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
15xRp1/2"
dimensions
28x33x35 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050057891
code
size
22xRp1/2"
dimensions
26x27x40 mm
weight
0.08 kg
packaging
bag (10 pce)
gtin
05022050057921
code
size
22xRp3/4"
dimensions
35x43x48 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
05022050057938
code
size
28xRp1"
dimensions
40x55x55 mm
weight
0.17 kg
packaging
bag (10 pce)
gtin
05022050057945
code
size
35xRp1 1/4"
dimensions
41x52x90 mm
weight
0.33 kg
packaging
bag (1 pce)
gtin
05022050885425
item
Endex Elbow 90° connector
item number with gtin
N14
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.33 kg
dimensions
41x52x90 mm
color
brass
materials
brass (CW617N)
finishing
none
shape
Elbow
connection type
solder, Rc - female thread gas conical (BSPT)
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
65 °C
peak medium temperature
110 °C
product group
fittingen (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
Pegler
series
Endex
product type
N14
UNSPS
40172800
label
value
label
etim-class
label
Material connection 1
value
Bronze
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Bronze
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-40°C - 65°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 149°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A-C) embodied carbon
data source
