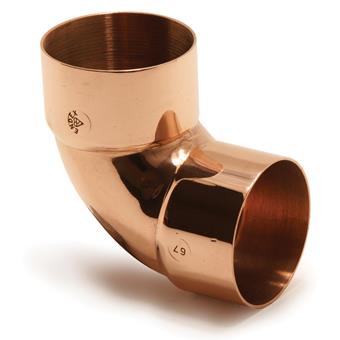

Endex Elbow 90° (Degreased and wrapped)

group: N12DW

The Endex N12DW is a 90° elbow; with two end feed ends. By using Endex in your piping installation you are using a simple and cost-effective method. Endex degreased provides a suitable application for medical gas lines.

  • Pre degreased
  • Provided with all relevant approvals.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

88445dw

size

15

dimensions

17x17x45 mm

weight

0.02 kg

packaging

bag (1 pce)

gtin

05022050884480

item number

88450dw

size

22

dimensions

25x25x60 mm

weight

0.04 kg

packaging

bag (1 pce)

gtin

05022050884602

item number

88451dw

size

28

dimensions

30x50x75 mm

weight

0.06 kg

packaging

bag (1 pce)

gtin

05022050884619

item number

88452dw

size

35

dimensions

38x38x90 mm

weight

0.11 kg

packaging

bag (1 pce)

gtin

05022050884626

item number

88454dw

size

42

dimensions

45x45x110 mm

weight

0.16 kg

packaging

bag (1 pce)

gtin

05022050884633

item number

88455dw

size

54

dimensions

57x57x135 mm

weight

0.28 kg

packaging

bag (1 pce)

gtin

05022050884640

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

angle

item number

88445dw

size

15

d1

15.0

DN1

DN12

l1

22

z1

12

d2

15.0

DN2

DN12

l2

22

z2

12

angle

90

item number

88450dw

size

22

d1

22.0

DN1

DN20

l1

29

z1

10

d2

22.0

DN2

DN20

l2

29

z2

10

angle

90

item number

88451dw

size

28

d1

28.0

DN1

DN25

l1

37

z1

18

d2

28.0

DN2

DN25

l2

37

z2

18

angle

90

item number

88452dw

size

35

d1

35.0

DN1

DN32

l1

46

z1

23

d2

35.0

DN2

DN32

l2

46

z2

23

angle

90

item number

88454dw

size

42

d1

42.0

DN1

DN40

l1

56

z1

29

d2

42.0

DN2

DN40

l2

56

z2

29

angle

90

item number

88455dw

size

54

d1

54.0

DN1

DN50

l1

66

z1

33

d2

54.0

DN2

DN50

l2

66

z2

33

angle

90

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

Elbow (90º)

connection type

solder

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74121000

brand

Pegler

series

Endex Degreased

product type

N12DW

UNSPS

40172812

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

65 °C

peak medium temperature

110 °C

image for N12

image | jpg

N12

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Endex DVGW

certifications | pdf

Pegler_Endex_NSF_REG4

certifications | pdf

VSH Endex KIWA

label

value

label

Material connection 1

value

Copper

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Copper

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

-40°C - 65°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 149°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

88445dw

carbon footprint (A-C) embodied carbon

0.09kgCO2e

data source

TM65

item number

88450dw

carbon footprint (A-C) embodied carbon

0.16kgCO2e

data source

TM65

item number

88451dw

carbon footprint (A-C) embodied carbon

0.29kgCO2e

data source

TM65

item number

88452dw

carbon footprint (A-C) embodied carbon

0.48kgCO2e

data source

TM65

item number

88454dw

carbon footprint (A-C) embodied carbon

0.72kgCO2e

data source

TM65

item number

88455dw

carbon footprint (A-C) embodied carbon

1.29kgCO2e

data source

TM65
