Endex Slip Coupling

group: N1 Slip

The Endex N1 Slip is a slip coupling with 2 end feed ends. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.

  • Compact neat joints
  • Clear identification on fittings dimensions
  • Suitable for a range of applications
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CSN

CSN

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

88037

size

15xØ15

dimensions

17x17x23 mm

weight

0.01 kg

packaging

bag (10 pce)

gtin

05022050055170

item number

88039

size

22xØ22

dimensions

25x25x32 mm

weight

0.02 kg

packaging

bag (10 pce)

gtin

05022050055187

item number

88031

size

35xØ35

dimensions

37x37x47 mm

weight

0.06 kg

packaging

bag (10 pce)

gtin

05022050402691

item number

88042

size

28xØ28

dimensions

30x30x39 mm

weight

0.03 kg

packaging

bag (10 pce)

gtin

05022050055194

item number

88032

size

42xØ42

dimensions

45x45x55 mm

weight

0.09 kg

packaging

bag (1 pce)

gtin

05022050880321

item number

88033

size

54xØ54

dimensions

57x57x65 mm

weight

0.13 kg

packaging

bag (1 pce)

gtin

05022050880338

item number

size

d1

l1

d2

l2

item number

88037

size

15xØ15

d1

15.0

l1

12

d2

15.0

l2

12

item number

88039

size

22xØ22

d1

22.0

l1

16

d2

22.0

l2

16

item number

88031

size

35xØ35

d1

l1

d2

l2

item number

88042

size

28xØ28

d1

28.0

l1

19

d2

28.0

l2

19

item number

88032

size

42xØ42

d1

l1

d2

l2

item number

88033

size

54xØ54

d1

54.0

l1

33

d2

54.0

l2

33

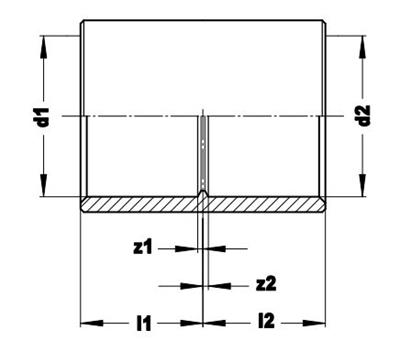

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

straight

connection type

solder

sealing

Metal sealing

general

product group

fittings (demountable)

HS code

74121000

brand

Pegler

series

Endex

UNSPS

40172612

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

65 °C

peak medium temperature

110 °C

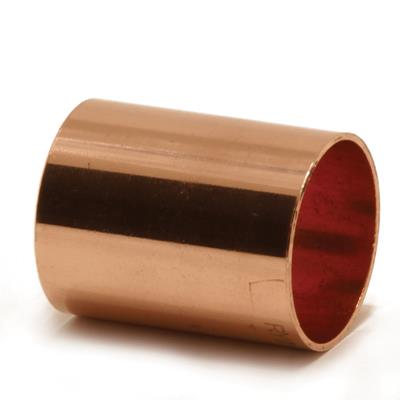

image for N1_Slip

image | jpg

N1_Slip

image for Diagram

diagram | jpg

Diagram

certifications | pdf

CSN Endfeed

certifications | pdf

Endex DVGW

certifications | pdf

Pegler_Endex_Brass_Copper_WRAS

certifications | pdf

Pegler_Endex_NSF_REG4

certifications | pdf

VSH Endex KIWA

item number

carbon footprint (A-C) embodied carbon

data source

item number

88037

carbon footprint (A-C) embodied carbon

0.04kgCO2e

data source

TM65

item number

88039

carbon footprint (A-C) embodied carbon

0.09kgCO2e

data source

TM65

item number

88031

carbon footprint (A-C) embodied carbon

0.26kgCO2e

data source

TM65

item number

88042

carbon footprint (A-C) embodied carbon

0.14kgCO2e

data source

TM65

item number

88032

carbon footprint (A-C) embodied carbon

0.4kgCO2e

data source

TM65

item number

88033

carbon footprint (A-C) embodied carbon

0.62kgCO2e

data source

TM65
