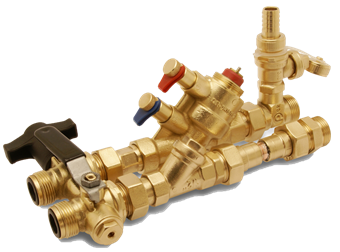

Compact Dynamic inc Strainer MVS (Right Handle)

group: MVS40 902 ST RH

The tried and trusted Pegler Proflow MVS40 902 PICV (Pressure Independent Control Valve) comes complete with a venturi measurement, this allows a flow reading directly through the valve. Providing significant time savings when it comes to verifying the flow and improved accuracy.

  • Including strainer
  • Built in venturi for flow measurement
  • 40mm centres
  • Hot and cold indicators
  • Low, standard and high flow versions
  • Left or right-handed
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

DN1

l1

DN2

l2

DN3

DN4

l4

a

item number

18303

size

DN15 LF

DN1

DN15

l1

26

DN2

DN15

l2

244

DN3

DN15

DN4

DN15

l4

30

a

5

item number

18304

size

DN15 SF

DN1

DN15

l1

26

DN2

DN15

l2

244

DN3

DN15

DN4

DN15

l4

30

a

5

item number

18305

size

DN15 HF

DN1

DN15

l1

26

DN2

DN15

l2

244

DN3

DN15

DN4

DN15

l4

30

a

5

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR), CW614N, CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (dynamic balancing valves)

brand

Pegler

series

ProFlow MVS

product type

MVS40 902 ST RH

UNSPS

40141652
