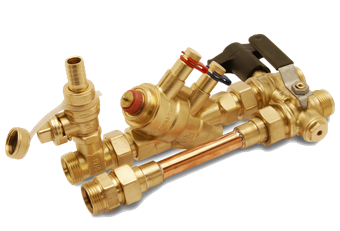

Compact Dynamic MVS Right Handle

Product Image for Compact Dynamic MVS Right Handle
Product Image for Compact Dynamic MVS Right Handle

group: MVS40 902 RH

The tried and trusted Pegler Proflow MVS40 902 PICV (Pressure Independent Control Valve) comes complete with a venturi measurement, this allows a flow reading directly through the valve. Providing significant time savings when it comes to verifying the flow and improved accuracy.
  • Built in venturi for flow measurement
  • 40mm centres
  • Hot and cold indicators
  • Low, standard and high flow versions
  • Left or right-handed
    • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    cooling

    cooling

    show all
    show less

    segments

    commercial building

    commercial building

    industry

    industry

    show all
    show less

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    18300

    size

    DN15 LF

    dimensions

    270x67x163

    weight

    2.13 kg

    packaging

    box (1 pce)

    gtin

    05022050599353

    item number

    18301

    size

    DN15 SF

    dimensions

    270x67x163

    weight

    2.18 kg

    packaging

    box (1 pce)

    gtin

    05022050599377

    item number

    18302

    size

    DN15 HF

    dimensions

    270x67x163

    weight

    2.14 kg

    packaging

    box (1 pce)

    gtin

    05022050599391

    item number

    size

    DN1

    l1

    DN2

    l2

    DN3

    DN4

    l4

    a

    item number

    18300

    size

    DN15 LF

    DN1

    DN15

    l1

    26

    DN2

    DN15

    l2

    244

    DN3

    DN15

    DN4

    DN15

    l4

    30

    a

    5

    item number

    18301

    size

    DN15 SF

    DN1

    DN15

    l1

    26

    DN2

    DN15

    l2

    244

    DN3

    DN15

    DN4

    DN15

    l4

    30

    a

    5

    item number

    18302

    size

    DN15 HF

    DN1

    DN15

    l1

    26

    DN2

    DN15

    l2

    244

    DN3

    DN15

    DN4

    DN15

    l4

    30

    a

    5

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW602N (DZR), CW614N, CW617N)

    finishing

    none

    shape

    straight (0º)

    connection type

    G - male thread gas cylindrical (BSPP)

    pressure rating (PN)

    PN 16

    sealing

    EPDM

    general

    product group

    valves (dynamic balancing valves)

    brand

    Pegler

    series

    ProFlow MVS

    product type

    MVS40 902 RH

    UNSPS

    40141652

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -10 °C

    max medium temperature

    90 °C

    peak medium temperature

    90 °C

    Kvs-value

    value depends on the item view items

    Kv-value

    value depends on the item view items

    image for CMPT DYN MVS LF (RHandle)

    image | png

    CMPT DYN MVS LF (RHandle)

    image for Diagram

    diagram | png

    Diagram
