group: MVS40 1600 ST RH
heating
cooling
industry
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
DN15 LF
dimensions
328x67x163
weight
2.67 kg
packaging
carton (1 pce)
gtin
05022050648112
code
size
DN15 SF
dimensions
328x67x163
weight
2.67 kg
packaging
carton (1 pce)
gtin
05022050648136
code
size
DN15 HF
dimensions
328x67x163
weight
2.67 kg
packaging
carton (1 pce)
gtin
05022050648150
code
size
DN1
l1
DN2
l2
DN3
l3
DN4
l4
a
item

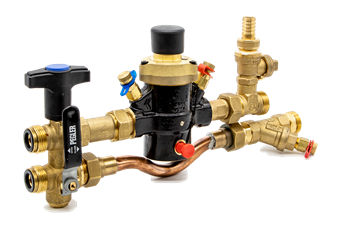

Proflow MVS40 1600 Strainer Right Handed
item number with gtin
MVS40 1600 ST RH
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
2.67 kg
dimensions
328x67x163
color
brass, black
materials
brass (CW511L (lead-free), CW602N (DZR), CW617N, CW614N)
finishing
none
shape
straight
connection type
G - male thread gas cylindrical (BSPP)
pressure rating (PN)
PN 16
sealing
EPDM, PTFE
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
90 °C
peak medium temperature
90 °C
product group
valves (dynamic balancing valves)
ETIM class
EC011312 Pressure-compensated control valvebrand
Pegler
series
ProFlow MVS
product type
MVS40 1600 ST RH
UNSPS
40141652
label
value
label
etim-class
label
Nominal diameter
value
DN 15
label
Connections
value
External thread cylindrical BSPP-G (ISO 228-1)
label
Article compression class
value
PN 16
label
Medium temperature (continuous)
value
-10°C - 90°C
label
Medium temperature (continuous) (imperial)
value
14°F - 194°F
label
Length
value
328mm
label
Length (imperial)
value
12.91"
label
Height
value
163mm
label
Height (imperial)
value
6.42"
