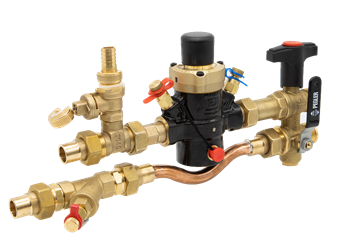

Proflow MVS40 1600 Strainer Left Handed

group: MVS40 1600 ST LH

The Pegler Proflow MVS40 1600 (modular valve solutions) valves are a range of prefabricated assemblies that have been designed to control and maintain Fan Coil Units or other terminal units.
  • Including strainer
  • Toggle between bypass & dynamic functions
  • Complete with locking pin for anti-tamper
  • Available with XPress, Tectite, male threaded and soldered connections
  • Flow-control with a hysteresis of 5.0% to 7.7%
  • Built-in “fast-flush” full-bore integrated flushing bypass
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    18609

    size

    DN15 LF

    dimensions

    328x67x163

    weight

    2.67 kg

    packaging

    carton (1 pce)

    gtin

    05022050648235

    item number

    18610

    size

    DN15 SF

    dimensions

    328x67x163

    weight

    2.67 kg

    packaging

    carton (1 pce)

    gtin

    05022050648259

    item number

    18611

    size

    DN15 HF

    dimensions

    328x67x163

    weight

    2.67 kg

    packaging

    carton (1 pce)

    gtin

    05022050648273

    item number

    size

    DN1

    l1

    DN2

    l2

    DN3

    l3

    DN4

    l4

    a

    item number

    18609

    size

    DN15 LF

    DN1

    DN15

    l1

    26

    DN2

    DN15

    l2

    125

    DN3

    DN15

    l3

    97

    DN4

    DN15

    l4

    80

    a

    5

    item number

    18610

    size

    DN15 SF

    DN1

    DN15

    l1

    26

    DN2

    DN15

    l2

    125

    DN3

    DN15

    l3

    97

    DN4

    DN15

    l4

    80

    a

    5

    item number

    18611

    size

    DN15 HF

    DN1

    DN15

    l1

    26

    DN2

    DN15

    l2

    125

    DN3

    DN15

    l3

    97

    DN4

    DN15

    l4

    80

    a

    5

    technical drawing for product

    characteristics

    color

    brass, black

    materials

    brass (CW511L (lead-free), CW602N (DZR), CW614N, CW617N)

    finishing

    none

    shape

    straight (0º)

    connection type

    G - male thread gas cylindrical (BSPP)

    pressure rating (PN)

    PN 16

    sealing

    EPDM, PTFE

    general

    product group

    valves (dynamic balancing valves)

    ETIM class

    EC011312 Pressure-compensated control valve

    brand

    Pegler

    series

    ProFlow MVS

    product type

    MVS40 1600 ST LH

    UNSPS

    40141652

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -10 °C

    max medium temperature

    90 °C

    peak medium temperature

    90 °C

    Kvs-value

    value depends on the item view items

    Kv-value

    value depends on the item view items

    image for MVS40 1600 LH strainer

    image | png

    MVS40 1600 LH strainer

    image for Diagram

    diagram | png

    Diagram

    label

    value

    label

    Nominal diameter

    value

    DN 15

    label

    Connections

    value

    External thread cylindrical BSPP-G (ISO 228-1)

    label

    Article compression class

    value

    PN 16

    label

    Medium temperature (continuous)

    value

    -10°C - 90°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 194°F

    label

    Length

    value

    328mm

    label

    Height

    value

    163mm
