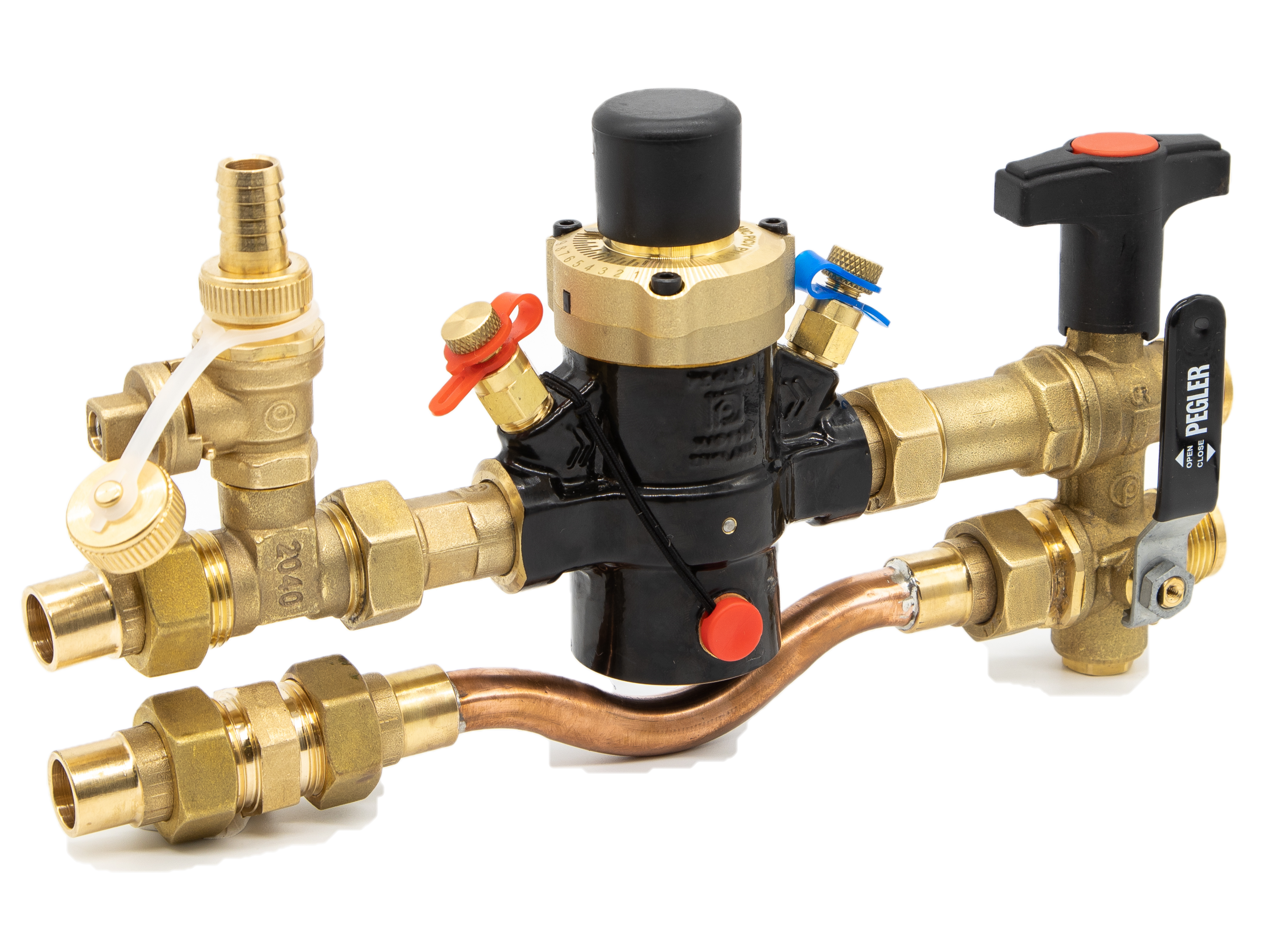

group: MVS40 1600 LH
heating
cooling
commercial building
industry
no approvals available
item number
size
dimensions
weight
packaging
gtin
item number
size
DN15 LF
dimensions
270x67x163
weight
2.45 kg
packaging
carton (1 pce)
gtin
05022050648174
item number
size
DN15 SF
dimensions
270x67x163
weight
2.45 kg
packaging
carton (1 pce)
gtin
05022050641762
item number
size
DN15 HF
dimensions
270x67x163
weight
2.45 kg
packaging
carton (1 pce)
gtin
05022050641748

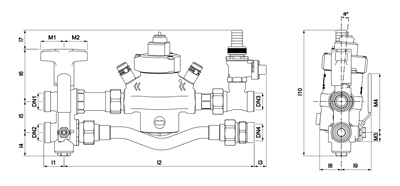

item number
size
DN1
l1
DN2
l2
DN3
DN4
l4
a
color
brass, black
materials
brass (CW511L (lead-free), CW602N (DZR), CW614N, CW617N)
finishing
none
shape
straight (0º)
connection type
G - male thread gas cylindrical (BSPP)
pressure rating (PN)
PN 16
sealing
EPDM, PTFE
product group
valves (dynamic balancing valves)
ETIM class
EC011312 Pressure-compensated control valve
brand
Pegler
series
ProFlow MVS
product type
MVS40 1600 LH
UNSPS
40141652
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
90 °C
peak medium temperature
90 °C
Kvs-value
value depends on the item view items
Kv-value
value depends on the item view items
label
value
label
ETIM class
label
Nominal diameter
value
DN 15
label
Connections
value
External thread cylindrical BSPP-G (ISO 228-1)
label
Article compression class
value
PN 16
label
Medium temperature (continuous)
value
-10°C - 90°C
label
Medium temperature (continuous) (imperial)
value
14°F - 194°F
label
Length
value
270mm
label
Height
value
163mm
