Modern Angle Decorative Radiator Valve

group: MTRVLS

The Pegler Terrier TdecMRVMin is a set containing a modern top manually operated angle pattern decorative radiator valve with identical lock shield. It has a smooth operation and high-quality feel with a durable easy fit thermal ring connection.
  • high quality contemporary design aesthetics in line with current trends for feature radiators and towel rails.
  • a stylish and versatile finishing touch that is tried and trusted.
  • quick and easy to install.
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    segments

    commercial building

    commercial building

    approvals

    BSI Kitemark

    BSI Kitemark

    item number

    size

    item number

    632304

    size

    15xR1/2

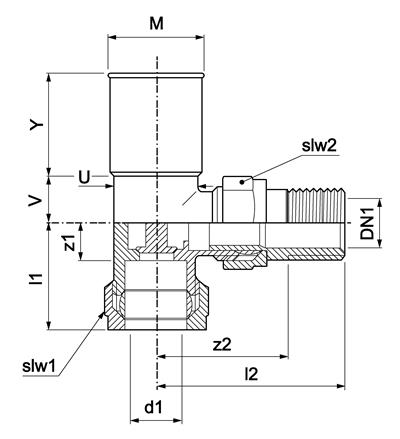

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    connection type

    compression, R - male thread gas conical (BSPT)

    sealing

    EPDM

    general

    product group

    radiator valves (MRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818039

    brand

    Pegler

    series

    Terrier Decorative

    product type

    MTRVLS

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

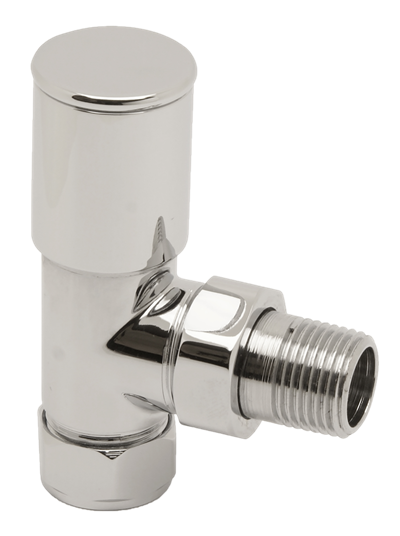

    image for TdecMRVMin

    image | png

    TdecMRVMin

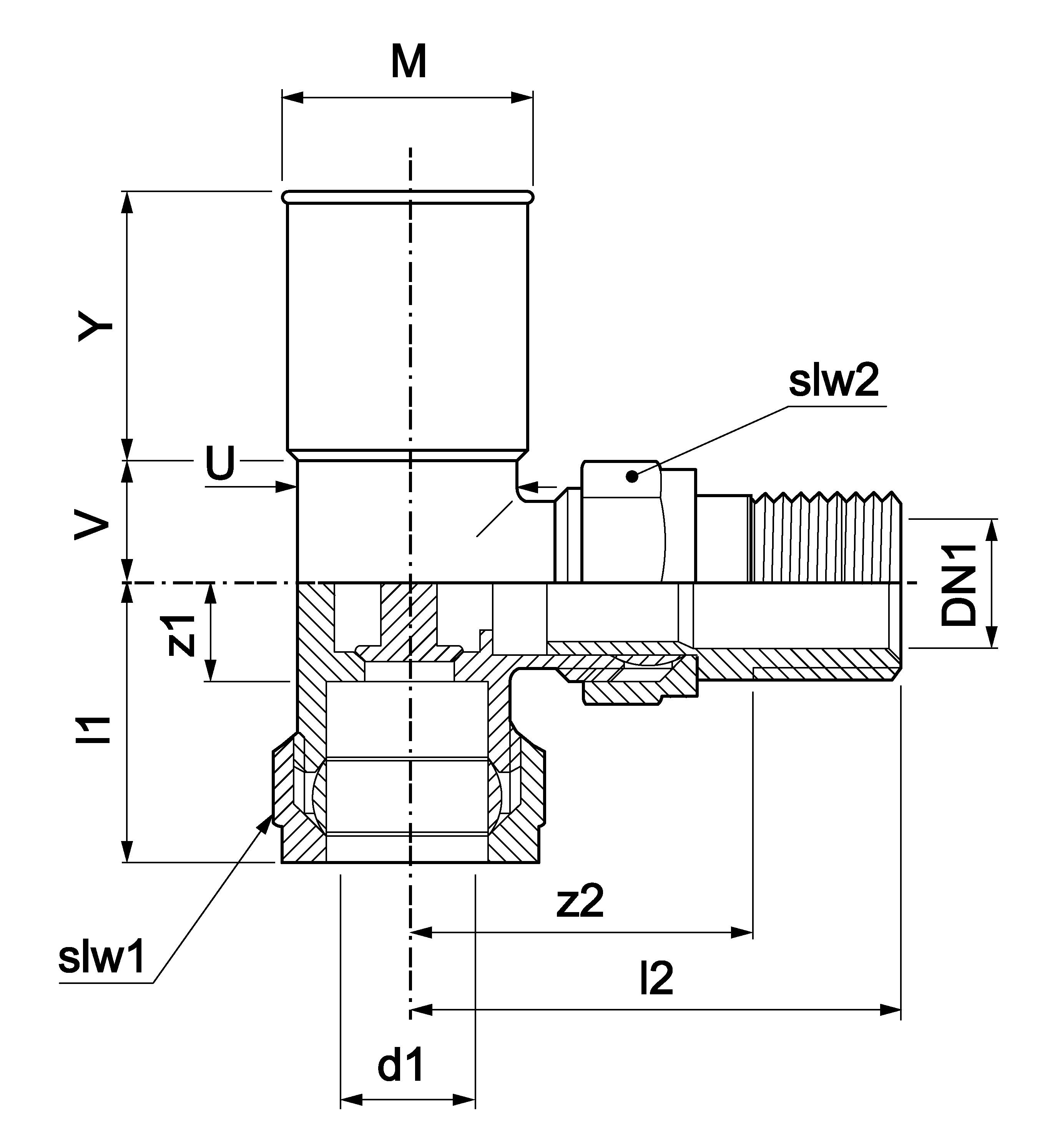

    image for Diagram

    diagram | jpg

    Diagram

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Shape

    value

    Right-angled

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    label

    Height

    value

    130mm
