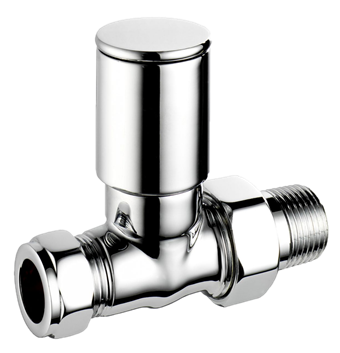

Straight Decorative Radiator Valve

group: MTRVCPLSSTR

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

632306

size

15xR1/2

dimensions

60x120x130 mm

weight

0.69 kg

packaging

-

gtin

05013866071904

item number

size

item number

632306

size

15xR1/2

technical drawing for product

characteristics

color

chrome

materials

plastic, brass (CW617N, ABS)

finishing

polished chrome

shape

Elbow

connection type

compression, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

radiator valves (MRV)

ETIM class

EC010136 Radiator valve

HS code

84818039

brand

Pegler

series

Terrier Decorative

product type

MTRVCPLSSTR

UNSPS

40141609

technical

max operating pressure liquid

10 bar

min. medium temperature

4 °C

max medium temperature

120 °C

peak medium temperature

120 °C

image for TdecMRVMinSTR

image | png

TdecMRVMinSTR

image for Diagram

diagram | jpg

Diagram

label

value

label

ETIM class

label

Housing material

value

Brass

label

Shape

value

Right-angled

label

Suitable for single pipe system

value

No

label

Suitable for two pipe system

value

No

label

Height

value

130mm
