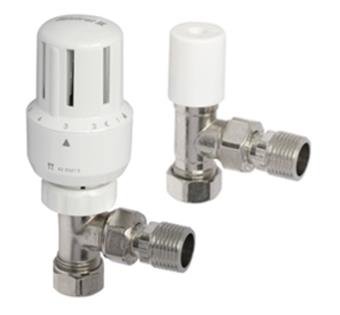

Mistral trv & lockshield pack with standard tail. chrome plate finish.

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

utility

utility

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

42253

size

-

dimensions

71x83x87 mm

weight

0.49 kg

packaging

Box (1 pce)

gtin

05022050422736

item number

42252

size

-

dimensions

71x83x87 mm

weight

0.41 kg

packaging

Box (1 pce)

gtin

05022050422712

item number

size

item number

42253

size

item number

42252

size

technical drawing for product

characteristics

color

chrome

materials

plastic, brass (CW617N, ABS)

finishing

polished chrome

shape

Elbow

connection type

compression, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

radiator valves (TRV)

brand

Pegler

series

Mistral TRV

product type

M2TRVLS

UNSPS

40141609

technical

max operating pressure liquid

10 bar

min. medium temperature

4 cel

max medium temperature

120 cel

peak medium temperature

120 cel

image for M2TRV-LS

image | jpg

M2TRV-LS

image for Diagram

diagram | jpg

Diagram
