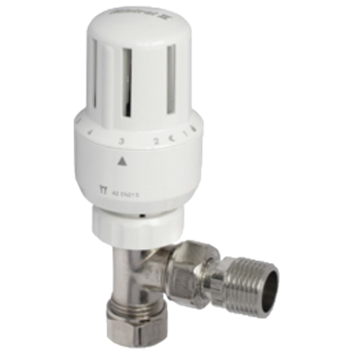

thermostatic radiator valve with standard tail. chrome plate finish.

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

42251

size

10xR1/2

dimensions

65x71x89 mm

weight

0.29 kg

packaging

box (1 pce)

gtin

05022050422705

item number

42250

size

15xR1/2

dimensions

64x71x89 mm

weight

0.25 kg

packaging

box (1 pce)

gtin

05022050422699

item number

size

DN1

DN2

item number

42251

size

10xR1/2

DN1

DN10

DN2

DN10

item number

42250

size

15xR1/2

DN1

DN12

DN2

DN12

technical drawing for product

characteristics

color

chrome

materials

plastic, brass (CW617N, ABS)

finishing

polished chrome

shape

Elbow

connection type

compression, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

radiator valves (TRV)

ETIM class

EC010136 Radiator valve

brand

Pegler

series

Mistral TRV

product type

M2TRV

UNSPS

40141609

technical

max operating pressure liquid

10 bar

min. medium temperature

4 °C

max medium temperature

120 °C

peak medium temperature

120 °C

image for M2TRV

image | png

M2TRV

image for Diagram

diagram | jpg

Diagram

label

value

label

ETIM class

label

Housing material

value

Brass

label

Operation

value

Manually operated

label

Suitable for single pipe system

value

No

label

Suitable for two pipe system

value

No

label

Height

value

89mm
