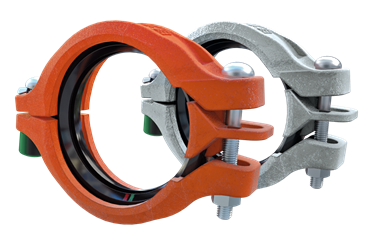

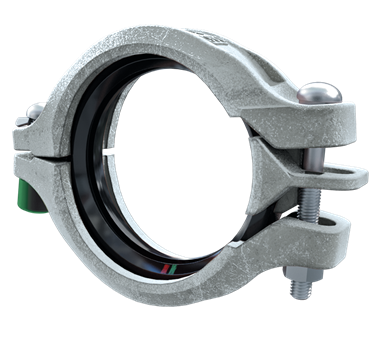

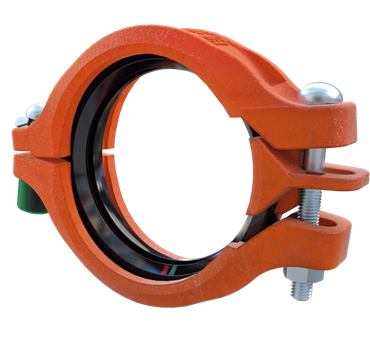

VSH Shurjoint quick install rigid coupling (2 x groove), EHM gasket

group: M07EHM

The VSH Shurjoint Model M07 is a ready to install rigid coupling for general piping applications where rigidity is required. The M07 includes two identical housing segments and a fully constrained wedge. Proper installation requires the tightening of only one bolt/nut. As this bolt/nut is tightened, the wedge applies uniform compression to the gasket. The hinge bolt/nut is factory pre-set and requires no adjustment.
  • 1-bolt design: super fast installation
  • patent pending wedge design
  • applications include valve connections, mechanical rooms, risers and long straight runs.
  • read more
    read less

    applications

    heating

    heating

    cooling

    cooling

    compressed air

    compressed air

    vacuum

    vacuum

    segments

    residential

    residential

    datacenters

    datacenters

    commercial building

    commercial building

    industry

    industry

    building installations

    building installations

    approvals

    CRN

    CRN

    NSF

    NSF

    item number

    size

    d1

    DN1

    l1

    z1

    d2

    DN2

    l2

    z2

    item number

    10M070020E01

    size

    60.3 (DN50) orange ISO

    d1

    60.3

    DN1

    DN50

    l1

    24

    z1

    2

    d2

    60.3

    DN2

    DN50

    l2

    24

    z2

    2

    item number

    10M070020E03

    size

    60.3 (DN50) galvanized ISO

    d1

    60.3

    DN1

    DN50

    l1

    24

    z1

    2

    d2

    60.3

    DN2

    DN50

    l2

    24

    z2

    2

    item number

    10M070029E01

    size

    76.1 (DN65) orange ISO

    d1

    76.1

    DN1

    DN65

    l1

    26

    z1

    2

    d2

    76.1

    DN2

    DN65

    l2

    26

    z2

    2

    item number

    10M070029E03

    size

    76.1 (DN65) galvanized ISO

    d1

    76.1

    DN1

    DN65

    l1

    26

    z1

    2

    d2

    76.1

    DN2

    DN65

    l2

    26

    z2

    2

    item number

    10M070030E01

    size

    88.9 (DN80) orange ISO

    d1

    88.9

    DN1

    DN80

    l1

    24

    z1

    2

    d2

    88.9

    DN2

    DN80

    l2

    24

    z2

    2

    item number

    10M070030E03

    size

    88.9 (DN80) galvanized ISO

    d1

    88.9

    DN1

    DN80

    l1

    24

    z1

    2

    d2

    88.9

    DN2

    DN80

    l2

    24

    z2

    2

    item number

    10M070045E01

    size

    114.3 (DN100) orange ISO

    d1

    114.3

    DN1

    DN100

    l1

    27

    z1

    2

    d2

    114.3

    DN2

    DN100

    l2

    27

    z2

    2

    item number

    10M070045E03

    size

    114.3 (DN100) galvanized ISO

    d1

    114.3

    DN1

    DN100

    l1

    27

    z1

    2

    d2

    114.3

    DN2

    DN100

    l2

    27

    z2

    2

    item number

    10M070052E01

    size

    139.7 (DN125) orange ISO

    d1

    139.7

    DN1

    DN125

    l1

    27

    z1

    2

    d2

    139.7

    DN2

    DN125

    l2

    27

    z2

    2

    item number

    10M070052E03

    size

    139.7 (DN125) galvanized ISO

    d1

    139.7

    DN1

    DN125

    l1

    27

    z1

    2

    d2

    139.7

    DN2

    DN125

    l2

    27

    z2

    2

    item number

    10M070085E01

    size

    219.1 (DN200) orange ISO

    d1

    219.1

    DN1

    DN200

    l1

    32

    z1

    2

    d2

    219.1

    DN2

    DN200

    l2

    32

    z2

    2

    item number

    10M070085E03

    size

    219.1 (DN200) galvanized ISO

    d1

    219.1

    DN1

    DN200

    l1

    32

    z1

    2

    d2

    219.1

    DN2

    DN200

    l2

    32

    z2

    2

    technical drawing for product

    characteristics

    color

    silver, orange

    materials

    cast iron (ASTM A536 65-45-12)

    finishing

    galvanised, varnished

    manufacturer

    Shurjoint

    shape

    straight (0º)

    connection type

    groove (coupling)

    sealing

    EPDM

    general

    product group

    fittings (demountable)

    ETIM class

    EC003024 Fitting with 2 connections

    brand

    VSH

    series

    Shurjoint

    product type

    M07EHM

    UNSPS

    40171704

    label

    value

    label

    Material connection 1

    value

    Cast iron

    label

    Material connection 2

    value

    Cast iron

    label

    Shape

    value

    Straight

    label

    Model

    value

    2-part

    label

    Bend angle

    value

    label

    Reducing

    value

    No

    label

    Eccentric

    value

    No

    label

    System specific

    value

    No

    label

    Connection 1

    value

    Ribbing groove (groove coupling)

    label

    Connection 2

    value

    Ribbing groove (groove coupling)

    label

    Material sealing

    value

    Ethylene-propylene diene monomer rubber (EPDM)

    label

    With buffer stud

    value

    No

    label

    With sealing rings/gaskets

    value

    No

    label

    Capped

    value

    No

    label

    With connection indicator

    value

    No

    label

    With drain valve

    value

    No

    label

    With de-aerator

    value

    No

    label

    FM quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    Certified according to NF 545

    value

    No

    label

    KIWA certified

    value

    No

    label

    Gastec QA mark

    value

    No

    label

    KOMO certified

    value

    No

    label

    Gastec QA - AR 214 (H2)

    value

    No
