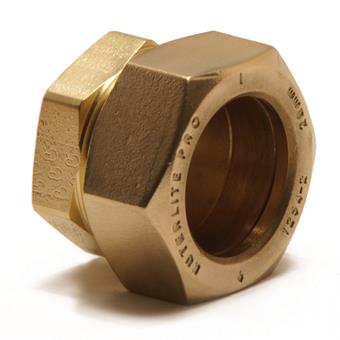

Kuterlite Pro Stop End

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

43489k

size

12

dimensions

19x21x25 mm

weight

0.05 kg

packaging

bag (5 pce)

gtin

05022050113108

item number

43490k

size

15

dimensions

23x25x26 mm

weight

0.07 kg

packaging

bag (5 pce)

gtin

05022050113177

item number

43492k

size

22

dimensions

30x35x35 mm

weight

0.12 kg

packaging

bag (5 pce)

gtin

05022050113337

item number

43493k

size

28

dimensions

32x36x40 mm

weight

0.19 kg

packaging

bag (5 pce)

gtin

05022050113399

item number

43494k

size

35

dimensions

39x45x46 mm

weight

0.28 kg

packaging

bag (1 pce)

gtin

05022050113467

item number

43495k

size

42

dimensions

37x55x58 mm

weight

0.41 kg

packaging

bag (1 pce)

gtin

05022050113528

item number

43496k

size

54

dimensions

42x67x77 mm

weight

0.78 kg

packaging

bag (1 pce)

gtin

05022050113689

item number

size

item number

43489k

size

12

item number

43490k

size

15

item number

43492k

size

22

item number

43493k

size

28

item number

43494k

size

35

item number

43495k

size

42

item number

43496k

size

54

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

End coupling

connection type

compression

sealing

Brass

general

product group

fittings (demountable)

ETIM class

EC003023 Fitting with 1 connection

HS code

74122000

brand

VSH

series

Kuterlite K900 Pro

product type

K951X

UNSPS

40172401

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

20 bar

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

image for K951

image | jpg

K951

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

Material sealing

value

Brass

label

Main colour fitting

value

Brass

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

43489k

carbon footprint (A-C) embodied carbon

0.21kgCO2e

data source

TM65

item number

43490k

carbon footprint (A-C) embodied carbon

0.31kgCO2e

data source

TM65

item number

43492k

carbon footprint (A-C) embodied carbon

0.54kgCO2e

data source

TM65

item number

43493k

carbon footprint (A-C) embodied carbon

0.84kgCO2e

data source

TM65

item number

43494k

carbon footprint (A-C) embodied carbon

1.25kgCO2e

data source

TM65

item number

43495k

carbon footprint (A-C) embodied carbon

1.82kgCO2e

data source

TM65

item number

43496k

carbon footprint (A-C) embodied carbon

3.49kgCO2e

data source

TM65
