Kuterlite Pro One Piece Reducer Chrome Plated

group: K947XCP

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

KIWA

KIWA

WRAS

WRAS

item number

size

item number

61984K

size

22x15

technical drawing for product

characteristics

color

chrome

materials

brass (CW602N (DZR))

finishing

chromed

shape

straight

connection type

compression

sealing

Brass

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K900 Pro

product type

K947XCP

UNSPS

40173601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

20 bar

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

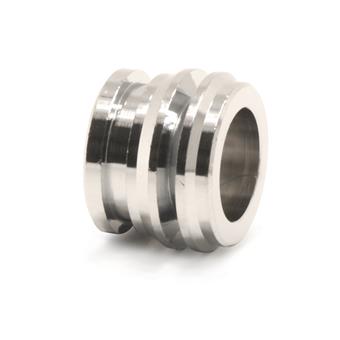

image for K947XCP

image | jpg

K947XCP

image for Diagram

diagram | jpg

Diagram

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Chromium-plated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Chromium-plated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Main colour fitting

value

Chrome

label

Material sealing

value

Brass

label

With buffer stud

value

No

label

Length

value

19mm

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

61984K

carbon footprint (A-C) embodied carbon

0.38kgCO2e

data source

TM65
