Kuterlite Pro One Piece Reducer

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

KIWA

KIWA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

43428k

size

15x10

dimensions

-

weight

0.01 kg

packaging

bag (5 pce)

gtin

05022050118691

item number

43430k

size

15x12

dimensions

17x17x17 mm

weight

0.01 kg

packaging

bag (5 pce)

gtin

05022050110572

item number

43429k

size

15x8

dimensions

12x17x17 mm

weight

0.02 kg

packaging

bag (5 pce)

gtin

05022050105981

item number

43437k

size

18x12

dimensions

18x19x19 mm

weight

0.02 kg

packaging

bag (5 pce)

gtin

05022050434418

item number

43431k

size

18x15

dimensions

18x23x23 mm

weight

0.01 kg

packaging

bag (5 pce)

gtin

05022050110633

item number

43432k

size

22x12

dimensions

18x22x24 mm

weight

0.03 kg

packaging

bag (5 pce)

gtin

05022050110695

item number

43433k

size

22x15

dimensions

19x23x25 mm

weight

0.03 kg

packaging

bag (5 pce)

gtin

05022050110756

item number

43434k

size

22x18

dimensions

18x23x23 mm

weight

0.02 kg

packaging

bag (5 pce)

gtin

05022050110817

item number

43435k

size

28x15

dimensions

18x30x30 mm

weight

0.05 kg

packaging

bag (5 pce)

gtin

05022050110886

item number

43436k

size

28x22

dimensions

18x30x30 mm

weight

0.04 kg

packaging

bag (5 pce)

gtin

05022050110947

item number

size

item number

43428k

size

15x10

item number

43430k

size

15x12

item number

43429k

size

15x8

item number

43437k

size

18x12

item number

43431k

size

18x15

item number

43432k

size

22x12

item number

43433k

size

22x15

item number

43434k

size

22x18

item number

43435k

size

28x15

item number

43436k

size

28x22

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

straight

connection type

compression

sealing

Brass

general

product group

fittings (demountable)

HS code

74122000

brand

VSH

series

Kuterlite K900 Pro

product type

K947X

UNSPS

40173601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

20 bar

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

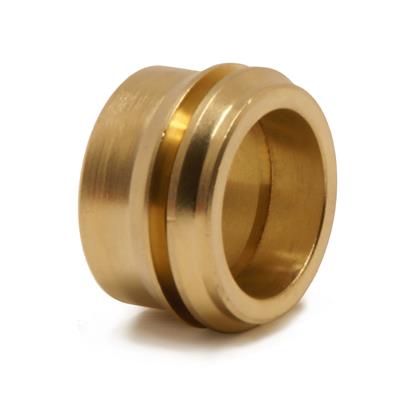

image for K947X

image | jpg

K947X

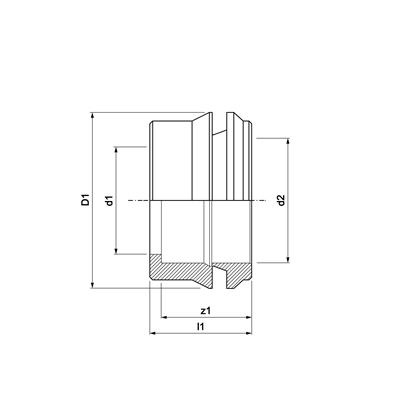

image for Diagram

diagram | jpg

Diagram

link to sheet | pdf

SDS Kuterlite

item number

carbon footprint (A-C) embodied carbon

data source

item number

43428k

carbon footprint (A-C) embodied carbon

0.05kgCO2e

data source

TM65

item number

43430k

carbon footprint (A-C) embodied carbon

0.08kgCO2e

data source

TM65

item number

43429k

carbon footprint (A-C) embodied carbon

0.09kgCO2e

data source

TM65

item number

43437k

carbon footprint (A-C) embodied carbon

0.06kgCO2e

data source

TM65

item number

43431k

carbon footprint (A-C) embodied carbon

0.15kgCO2e

data source

TM65

item number

43432k

carbon footprint (A-C) embodied carbon

0.11kgCO2e

data source

TM65

item number

43433k

carbon footprint (A-C) embodied carbon

0.09kgCO2e

data source

TM65

item number

43434k

carbon footprint (A-C) embodied carbon

0.24kgCO2e

data source

TM65

item number

43435k

carbon footprint (A-C) embodied carbon

0.17kgCO2e

data source

TM65

item number

43436k

carbon footprint (A-C) embodied carbon

0.1kgCO2e

data source

TM65
