group: K930X
potable water
heating
cooling
commercial building
KIWA
WRAS
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
15xRp1/4"x15
dimensions
29x44x64 mm
weight
0.18 kg
packaging
bag (5 pce)
gtin
05022050109316
code
size
15xRp1/2"x15
dimensions
28x40x66 mm
weight
0.16 kg
packaging
bag (5 pce)
gtin
05022050109194
code
size
22xRp1/2"x22
dimensions
33x45x75 mm
weight
0.21 kg
packaging
bag (5 pce)
gtin
05022050109378
code
size
28xRp1/2"x28
dimensions
44x54x72 mm
weight
0.31 kg
packaging
bag (1 pce)
gtin
05022050109477
code
size
28xRp1"x28
dimensions
42x57x90 mm
weight
0.44 kg
packaging
bag (1 pce)
gtin
05022050109538
item

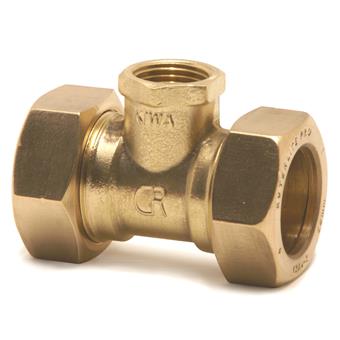

Kuterlite Pro Tee Female threaded
item number with gtin
K930X
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.44 kg
dimensions
42x57x90 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
T-piece, 90º
connection type
Rp - female thread cylindrical (BSPT), compression
pressure rating (PN)
PN 20
sealing
Brass
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
product group
fittingen (demountable)
ETIM class
EC003025 Fitting with 3 connectionsHS code
74122000
brand
VSH
series
Kuterlite K900 Pro
product type
K930X
UNSPS
40174601
scip
8959546f-c4a2-4234-89bb-61813ff739d7
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
No
label
Connection 1
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Connection 2
value
Compression ring
label
Material sealing
value
Brass
label
Main colour fitting
value
Brass
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A-C) embodied carbon
data source
