Kuterlite Pro Tee

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

43236k

size

10

dimensions

19x36x54 mm

weight

0.06 kg

packaging

bag (5 pce)

gtin

05022050104953

item number

43238k

size

15

dimensions

25x47x62 mm

weight

0.17 kg

packaging

bag (5 pce)

gtin

05022050105141

item number

43237k

size

12

dimensions

20x40x55 mm

weight

0.11 kg

packaging

bag (5 pce)

gtin

05022050105011

item number

43240k

size

22

dimensions

34x58x71 mm

weight

0.28 kg

packaging

bag (5 pce)

gtin

05022050105332

item number

43239k

size

18

dimensions

28x45x64 mm

weight

0.23 kg

packaging

bag (5 pce)

gtin

05022050105264

item number

43241k

size

28

dimensions

40x60x80 mm

weight

0.42 kg

packaging

bag (5 pce)

gtin

05022050105462

item number

43242k

size

35

dimensions

50x75x95 mm

weight

0.61 kg

packaging

bag (1 pce)

gtin

05022050105578

item number

43243k

size

42

dimensions

55x90x110 mm

weight

1.05 kg

packaging

bag (1 pce)

gtin

05022050105691

item number

43244k

size

54

dimensions

73x100x130 mm

weight

1.75 kg

packaging

bag (1 pce)

gtin

05022050105813

item number

size

item number

43236k

size

10

item number

43238k

size

15

item number

43237k

size

12

item number

43240k

size

22

item number

43239k

size

18

item number

43241k

size

28

item number

43242k

size

35

item number

43243k

size

42

item number

43244k

size

54

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

T-piece (90º)

connection type

compression

sealing

Brass

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

HS code

74122000

brand

VSH

series

Kuterlite K900 Pro

product type

K918X

UNSPS

40174601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

20 bar

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

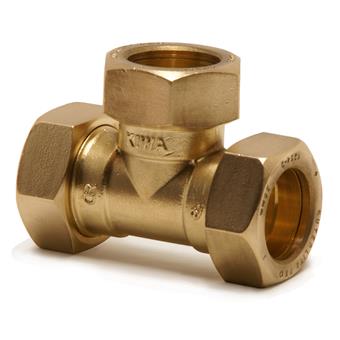

image for K918X

image | jpg

K918X

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Brass

label

Material quality connection 3

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 3

value

Untreated

label

Surface treatment connection 3

value

Untreated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Material sealing

value

Brass

label

Main colour fitting

value

Brass

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

43236k

carbon footprint (A-C) embodied carbon

0.49kgCO2e

data source

TM65

item number

43238k

carbon footprint (A-C) embodied carbon

1.01kgCO2e

data source

TM65

item number

43237k

carbon footprint (A-C) embodied carbon

0.76kgCO2e

data source

TM65

item number

43240k

carbon footprint (A-C) embodied carbon

1.86kgCO2e

data source

TM65

item number

43239k

carbon footprint (A-C) embodied carbon

1.24kgCO2e

data source

TM65

item number

43241k

carbon footprint (A-C) embodied carbon

2.72kgCO2e

data source

TM65

item number

43242k

carbon footprint (A-C) embodied carbon

4.68kgCO2e

data source

TM65

item number

43243k

carbon footprint (A-C) embodied carbon

7.82kgCO2e

data source

TM65

item number

43244k

carbon footprint (A-C) embodied carbon

0.78kgCO2e

data source

TM65
