group: K917X
potable water
heating
cooling
commercial building
WRAS
BSI Kitemark KM 15121
KIWA
code
size
dimensions
weight
packaging
gtin
code
size
12xRp1/2"
dimensions
20x35x55 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050102362
code
size
12xRp3/8"
dimensions
20x35x40 mm
weight
0.07 kg
packaging
bag (5 pce)
gtin
05022050102942
code
size
15xRp1/2"
dimensions
25x26x60 mm
weight
0.11 kg
packaging
bag (5 pce)
gtin
05022050103505
code
size
15xRp3/4"
dimensions
35x48x55 mm
weight
0.16 kg
packaging
bag (5 pce)
gtin
05022050104267
code
size
18xRp1/2"
dimensions
29x40x47 mm
weight
0.11 kg
packaging
bag (5 pce)
gtin
05022050104328
code
size
22xRp1"
dimensions
38x50x60 mm
weight
0.2 kg
packaging
bag (5 pce)
gtin
05022050104441
code
size
22xRp3/4"
dimensions
32x33x70 mm
weight
0.16 kg
packaging
bag (5 pce)
gtin
05022050104380
code
size
28xRp1"
dimensions
38x55x65 mm
weight
0.27 kg
packaging
bag (5 pce)
gtin
05022050104519
code
size
35xRp1 1/4"
dimensions
48x70x80 mm
weight
0.44 kg
packaging
bag (1 pce)
gtin
05022050104557
code
size
42xRp1 1/2"
dimensions
55x75x90 mm
weight
0.62 kg
packaging
bag (1 pce)
gtin
05022050104625
item

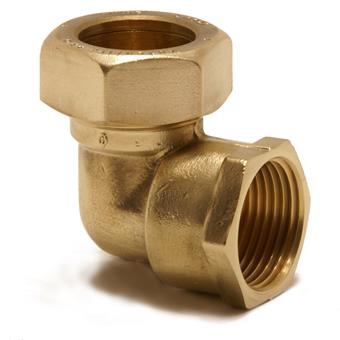

Kuterlite Pro Elbow 90°
item number with gtin
K917X
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.62 kg
dimensions
55x75x90 mm
color
brass, chrome
materials
brass (CW602N (DZR))
finishing
none
shape
Elbow
connection type
compression, Rp - female thread cylindrical (BSPT)
pressure rating (PN)
PN 20
sealing
Brass
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
VSH
series
Kuterlite K900 Pro
product type
K917X
UNSPS
40172801
scip
8959546f-c4a2-4234-89bb-61813ff739d7
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Material sealing
value
Brass
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A-C) embodied carbon
