group: K916X
potable water
heating
cooling
commercial building
KIWA
WRAS
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
12xR1 1/2"
dimensions
40x43x43 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
05022050097804
code
size
12xR3/8"
dimensions
16x21x50 mm
weight
0.05 kg
packaging
bag (5 pce)
gtin
05022050097927
code
size
15xR1 1/2"
dimensions
25x42x48 mm
weight
0.1 kg
packaging
bag (5 pce)
gtin
05022050098108
code
size
15xR3/8"
dimensions
25x38x43 mm
weight
0.1 kg
packaging
bag (5 pce)
gtin
05022050098047
code
size
18xR1 1/2"
dimensions
32x48x50 mm
weight
0.11 kg
packaging
bag (5 pce)
gtin
05022050098221
code
size
22xR1"
dimensions
35x55x60 mm
weight
0.19 kg
packaging
bag (5 pce)
gtin
05022050098511
code
size
22xR3/4"
dimensions
33x48x55 mm
weight
0.17 kg
packaging
bag (5 pce)
gtin
05022050098283
code
size
28x1"
dimensions
34x40x85 mm
weight
0.25 kg
packaging
bag (5 pce)
gtin
05022050099006
code
size
35xR1 1/4"
dimensions
45x75x75 mm
weight
0.46 kg
packaging
bag (1 pce)
gtin
05022050099297
code
size
42xR1 1/2"
dimensions
50x80x95 mm
weight
0.65 kg
packaging
bag (1 pce)
gtin
05022050099419
item

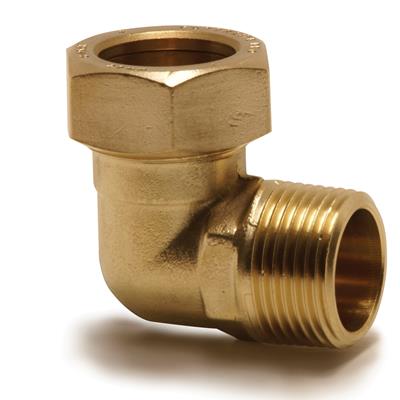

Kuterlite Pro Elbow 90°
item number with gtin
K916X
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.65 kg
dimensions
50x80x95 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
Elbow
connection type
compression, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 20
sealing
Brass
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
product group
fittingen (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
VSH
series
Kuterlite K900 Pro
product type
K916X
UNSPS
40172801
scip
8959546f-c4a2-4234-89bb-61813ff739d7
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Material sealing
value
Brass
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
