group: K912X
potable water
heating
cooling
commercial building
KIWA
WRAS
BSI Kitemark KM 15121
item number
size
dimensions
weight
packaging
gtin
item number
size
12xRp1/2"
dimensions
21x25x40 mm
weight
0.07 kg
packaging
bag (5 pce)
gtin
05022050095794
item number
size
15xRp1/2"
dimensions
25x26x39 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050095978
item number
size
12xRp3/8"
dimensions
21x21x37 mm
weight
0.06 kg
packaging
bag (5 pce)
gtin
05022050095732
item number
size
22xRp3/4"
dimensions
31x33x43 mm
weight
0.13 kg
packaging
bag (5 pce)
gtin
05022050096289
item number
size
15xRp3/4"
dimensions
25x30x41 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050257284
item number
size
15xRp3/8"
dimensions
21x25x36 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
05022050095855
item number
size
18xRp1/2"
dimensions
25x28x42 mm
weight
0.12 kg
packaging
bag (5 pce)
gtin
05022050096166
item number
size
18xRp3/4"
dimensions
30x36x40 mm
weight
0.13 kg
packaging
bag (5 pce)
gtin
05022050096401
item number
size
22xRp1"
dimensions
32x33x45 mm
weight
0.17 kg
packaging
bag (5 pce)
gtin
05022050096340
item number
size
22xRp1/2"
dimensions
26x33x42 mm
weight
0.12 kg
packaging
bag (5 pce)
gtin
05022050096227
item number
size
28xRp1"
dimensions
37x40x46 mm
weight
0.2 kg
packaging
bag (5 pce)
gtin
05022050096463
item number
size
35xRp1 1/4"
dimensions
50x50x53 mm
weight
0.28 kg
packaging
bag (1 pce)
gtin
05022050096500
item number
size
42x1 1/2"
dimensions
56x56x58 mm
weight
0.45 kg
packaging
bag (1 pce)
gtin
05022050096562
item number
size
54xRp2"
dimensions
57x63x72 mm
weight
0.72 kg
packaging
bag (1 pce)
gtin
05022050096623
code
size
item number
size
12xRp1/2"
item number
size
15xRp1/2"
item number
size
12xRp3/8"
item number
size
22xRp3/4"
item number
size
15xRp3/4"
item number
size
15xRp3/8"
item number
size
18xRp1/2"
item number
size
18xRp3/4"
item number
size
22xRp1"
item number
size
22xRp1/2"
item number
size
28xRp1"
item number
size
35xRp1 1/4"
item number
size
42x1 1/2"
item number
size
54xRp2"
item

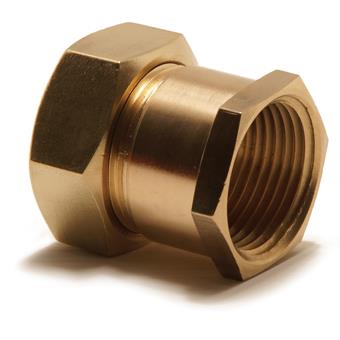

Kuterlite Pro Female Coupling
item number with gtin
K912X
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.72 kg
dimensions
57x63x72 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
straight
connection type
compression, Rp - female thread cylindrical (BSPT)
pressure rating (PN)
PN 20
sealing
Brass
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
VSH
series
Kuterlite K900 Pro
product type
K912X
UNSPS
40172601
scip
8959546f-c4a2-4234-89bb-61813ff739d7
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Material sealing
value
Brass
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
item number
