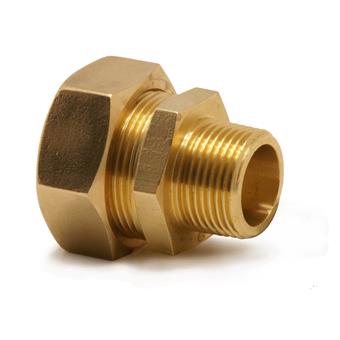

Kuterlite Pro Male Coupling

group: K911X

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

WRAS

WRAS

item number

size

item number

43052K

size

12xR1 1/2"

item number

43055K

size

15xR1 1/2"

item number

43051K

size

12xR3/8"

item number

43059K

size

22xR3/4"

item number

43053K

size

15xR1 1/4"

item number

43060K

size

22xR1"

item number

43056K

size

15xR3/4"

item number

43054K

size

15xR3/8"

item number

43057K

size

18xR1 1/2"

item number

43058K

size

22xR1 1/2"

item number

43062K

size

28xR1"

item number

43061K

size

28xR3/4"

item number

43064K

size

35xR1"

item number

43065K

size

35xR1 1/4"

item number

43066K

size

42xR1 1/2"

item number

43067K

size

54x2"

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

straight

connection type

compression, R - male thread gas conical (BSPT)

sealing

Brass

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K900 Pro

product type

K911X

UNSPS

40172601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

20 bar

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

image for K911X

image | jpg

K911X

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Brass

label

Material sealing

value

Brass

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

43052K

carbon footprint (A-C) embodied carbon

0.46kgCO2e

data source

TM65

item number

43055K

carbon footprint (A-C) embodied carbon

0.46kgCO2e

data source

TM65

item number

43051K

carbon footprint (A-C) embodied carbon

0.27kgCO2e

data source

TM65

item number

43059K

carbon footprint (A-C) embodied carbon

0.86kgCO2e

data source

TM65

item number

43053K

carbon footprint (A-C) embodied carbon

0.36kgCO2e

data source

TM65

item number

43060K

carbon footprint (A-C) embodied carbon

0.57kgCO2e

data source

TM65

item number

43056K

carbon footprint (A-C) embodied carbon

0.4kgCO2e

data source

TM65

item number

43054K

carbon footprint (A-C) embodied carbon

0.36kgCO2e

data source

TM65

item number

43057K

carbon footprint (A-C) embodied carbon

0.64kgCO2e

data source

TM65

item number

43058K

carbon footprint (A-C) embodied carbon

0.81kgCO2e

data source

TM65

item number

43062K

carbon footprint (A-C) embodied carbon

1.35kgCO2e

data source

TM65

item number

43061K

carbon footprint (A-C) embodied carbon

0.94kgCO2e

data source

TM65

item number

43064K

carbon footprint (A-C) embodied carbon

1.59kgCO2e

data source

TM65

item number

43065K

carbon footprint (A-C) embodied carbon

2.05kgCO2e

data source

TM65

item number

43066K

carbon footprint (A-C) embodied carbon

3.36kgCO2e

data source

TM65

item number

43067K

carbon footprint (A-C) embodied carbon

0.33kgCO2e

data source

TM65
