products

Kuterlite Pro Straight Coupling

group: K910X

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

WRAS

WRAS

item number

size

item number

43015K

size

10

item number

43017K

size

15

item number

43016K

size

12

item number

43019K

size

22

item number

43029K

size

12x10

item number

43031K

size

15x10

item number

43028K

size

15x12

item number

43025K

size

15x8

item number

43018K

size

18

item number

43033K

size

18x15

item number

43035K

size

22x15

item number

43020K

size

28

item number

43037K

size

28x22

item number

43021K

size

35

item number

43022K

size

42

item number

43023K

size

54

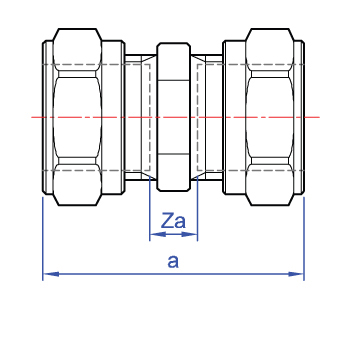

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

straight

connection type

compression

sealing

Brass

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K900 Pro

product type

K910X

UNSPS

40172601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

20 bar

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

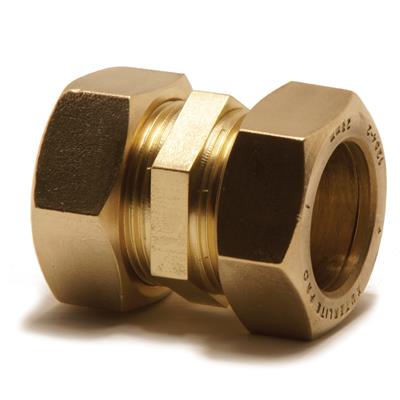

image for K910X

image | jpg

K910X

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Main colour fitting

value

Brass

label

Material sealing

value

Brass

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

43015K

carbon footprint (A-C) embodied carbon

0.33kgCO2e

data source

TM65

item number

43017K

carbon footprint (A-C) embodied carbon

0.85kgCO2e

data source

TM65

item number

43016K

carbon footprint (A-C) embodied carbon

0.51kgCO2e

data source

TM65

item number

43019K

carbon footprint (A-C) embodied carbon

0.36kgCO2e

data source

TM65

item number

43029K

carbon footprint (A-C) embodied carbon

0.67kgCO2e

data source

TM65

item number

43031K

carbon footprint (A-C) embodied carbon

1.28kgCO2e

data source

TM65

item number

43028K

carbon footprint (A-C) embodied carbon

1.92kgCO2e

data source

TM65

item number

43025K

carbon footprint (A-C) embodied carbon

2.69kgCO2e

data source

TM65

item number

43018K

carbon footprint (A-C) embodied carbon

4.76kgCO2e

data source

TM65

item number

43033K

carbon footprint (A-C) embodied carbon

0.3kgCO2e

data source

TM65

item number

43035K

carbon footprint (A-C) embodied carbon

0.46kgCO2e

data source

TM65

item number

43020K

carbon footprint (A-C) embodied carbon

0.41kgCO2e

data source

TM65

item number

43037K

carbon footprint (A-C) embodied carbon

0.66kgCO2e

data source

TM65

item number

43021K

carbon footprint (A-C) embodied carbon

0.7kgCO2e

data source

TM65

item number

43022K

carbon footprint (A-C) embodied carbon

1.08kgCO2e

data source

TM65

item number

43023K

carbon footprint (A-C) embodied carbon

1.1kgCO2e

data source

TM65
