VSH Kuterlite Compression Ring

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

22359

size

20

dimensions

9x22x22 mm

weight

0.02 kg

packaging

bag (1 pce)

gtin

05022050223593

item number

22360

size

25

dimensions

10x27x27 mm

weight

0.01 kg

packaging

bag (25 pce)

gtin

05022050223609

item number

22361

size

32

dimensions

11x34x34 mm

weight

0.01 kg

packaging

bag (5 pce)

gtin

05022050223616

item number

22364

size

63

dimensions

13x70x70 mm

weight

0.03 kg

packaging

unpackaged (1 pce)

gtin

05022050223647

item number

size

item number

22359

size

20

item number

22360

size

25

item number

22361

size

32

item number

22364

size

63

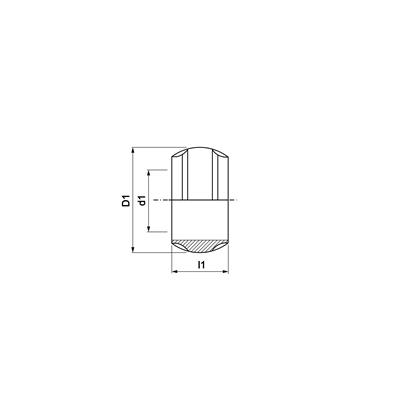

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

round

sealing

Metal sealing

general

product group

fittings (accessories (fittings))

ETIM class

EC011041 Compression ring

HS code

74122000

brand

VSH

series

Kuterlite K700

product type

K778B

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

12 bar

min. medium temperature

20 °C

max medium temperature

20 °C

peak medium temperature

20 °C

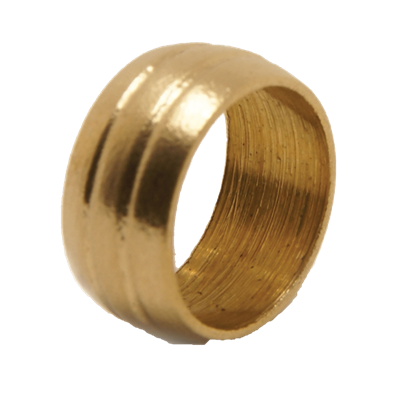

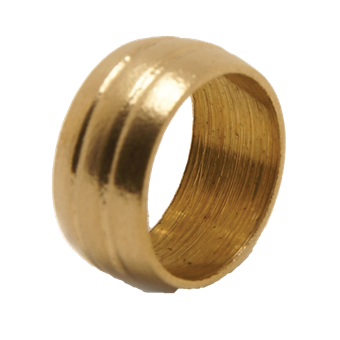

image for K778B

image | png

K778B

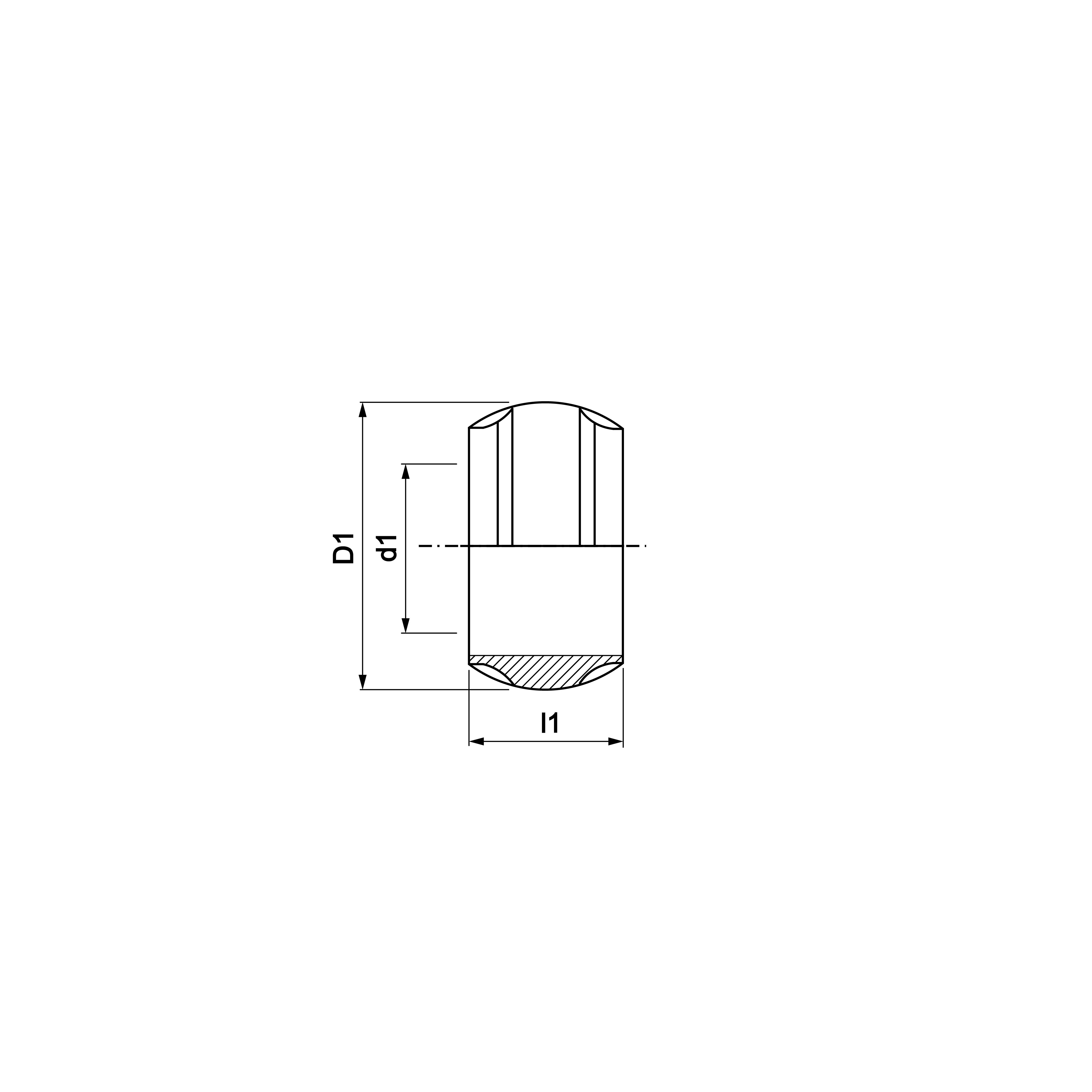

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite K700 WRAS

certifications | pdf

Reach declaration

link to sheet | pdf

SDS Kuterlite

certifications | pdf

TM65 Embodied Carbon Declaration

label

value

label

ETIM class

label

Material

value

Brass

label

Material quality

value

Dezincification resistant brass (DZR)

label

Suitable for copper tube

value

Yes

label

System specific

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

22359

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65

item number

22360

carbon footprint (A-C) embodied carbon

0.05kgCO2e

data source

TM65

item number

22361

carbon footprint (A-C) embodied carbon

0.15kgCO2e

data source

TM65

item number

22364

carbon footprint (A-C) embodied carbon

0.21kgCO2e

data source

TM65
