products

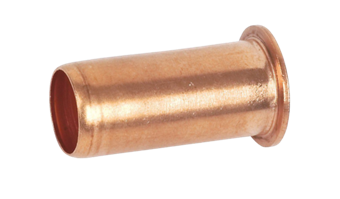

VSH Kuterlite Copper Liner

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

22371

size

20

dimensions

15x18x28 mm

weight

0.01 kg

packaging

bag (25 pce)

gtin

05022050011077

item number

22372

size

25

dimensions

20x24x36 mm

weight

0.01 kg

packaging

bag (25 pce)

gtin

05022050011084

item number

22373

size

32

dimensions

26x30x39 mm

weight

0.02 kg

packaging

bag (1 pce)

gtin

05022050223739

item number

22375

size

50

dimensions

40x43x45 mm

weight

0.05 kg

packaging

bag (10 pce)

gtin

05022050223753

item number

22376

size

63

dimensions

46x50x56 mm

weight

0.06 kg

packaging

unpackaged (1 pce)

gtin

05022050223760

item number

size

item number

22371

size

20

item number

22372

size

25

item number

22373

size

32

item number

22375

size

50

item number

22376

size

63

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

straight

sealing

Metal sealing

general

product group

fittings (accessories (fittings))

ETIM class

EC010626 Insert part of coupling

HS code

74122000

brand

VSH

series

Kuterlite K700

product type

K766M

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

12 bar

min. medium temperature

20 °C

max medium temperature

20 °C

peak medium temperature

20 °C

image for K766M

image | png

K766M

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite K700 WRAS

label

value

label

ETIM class

label

Material

value

Copper

item number

carbon footprint (A-C) embodied carbon

data source

item number

22371

carbon footprint (A-C) embodied carbon

0.06kgCO2e

data source

TM65

item number

22372

carbon footprint (A-C) embodied carbon

0.1kgCO2e

data source

TM65

item number

22373

carbon footprint (A-C) embodied carbon

0.25kgCO2e

data source

TM65

item number

22375

carbon footprint (A-C) embodied carbon

0.32kgCO2e

data source

TM65

item number

22376

carbon footprint (A-C) embodied carbon

0.17kgCO2e

data source

TM65
