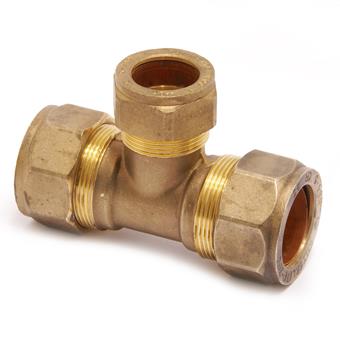

Kuterlite Tee Reduced

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

67181

size

25x25x20

dimensions

37x63x84 mm

weight

0.32 kg

packaging

bag (1 pce)

gtin

05022050671813

item number

67184

size

32x32x25

dimensions

46x75x98 mm

weight

0.51 kg

packaging

bag (1 pce)

gtin

05022050671844

item number

size

item number

67181

size

25x25x20

item number

67184

size

32x32x25

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

T-piece (90º)

connection type

compression

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

HS code

74122000

brand

VSH

series

Kuterlite K700

product type

K718B

UNSPS

40174601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

12 bar

min. medium temperature

20 °C

max medium temperature

20 °C

peak medium temperature

20 °C

image for K718B

image | jpg

K718B

image for Diagram

diagram | jpg

Diagram

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Brass

label

Material quality connection 3

value

CuZn36Pb2As (CW602N)

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Flange compression class

value

PN 10

label

Material sealing

value

Metal-sealing

label

Main colour fitting

value

Brass

label

Max. operating pressure at 20 °C

value

12bar

label

Max. operating pressure at 20 °C (imperial)

value

174.05psi

label

Medium temperature (continuous)

value

20°C - 20°C

label

Medium temperature (continuous) (imperial)

value

68°F - 68°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

67181

carbon footprint (A-C) embodied carbon

2.27kgCO2e

data source

TM65

item number

67184

carbon footprint (A-C) embodied carbon

0.84kgCO2e

data source

TM65
