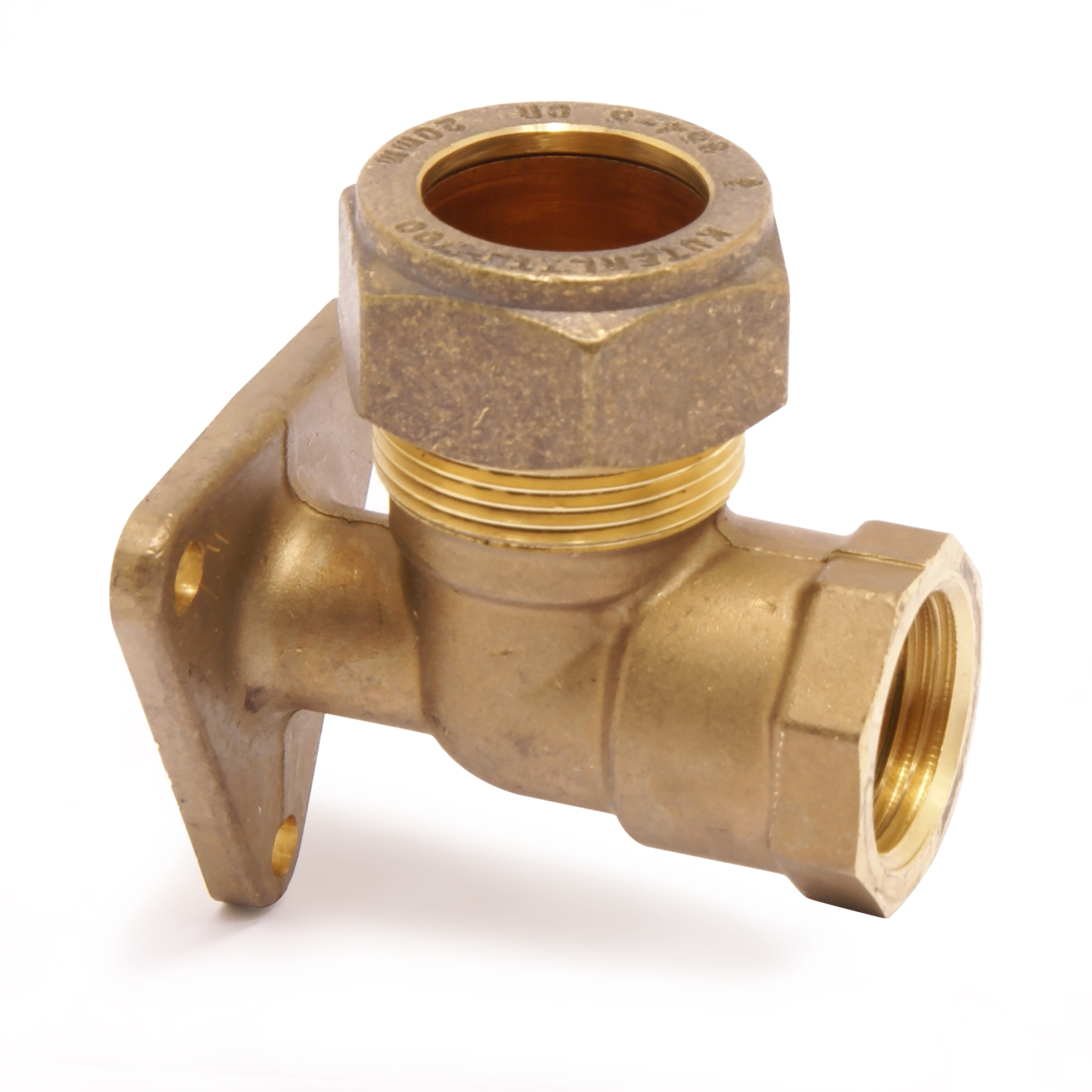

Kuterlite Back Plate Elbow 90°

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

67150

size

20xRp1/2"

dimensions

31x54x64 mm

weight

0.18 kg

packaging

bag (5 pce)

gtin

05022050044143

item number

67151

size

25xRp3/4"

dimensions

33x59x71 mm

weight

0.29 kg

packaging

bag (1 pce)

gtin

05022050671516

item number

size

item number

67150

size

20xRp1/2"

item number

67151

size

25xRp3/4"

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

Wall plate

connection type

compression, Rp - female thread cylindrical (BSPT)

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003099 Wall plate

HS code

74122000

brand

VSH

series

Kuterlite K700

product type

K717W

UNSPS

40172801

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

12 bar

min. medium temperature

20 °C

max medium temperature

20 °C

peak medium temperature

20 °C

image for K717W

image | jpg

K717W

certifications | pdf

Pegler Kuterlite K700 WRAS

certifications | pdf

Reach declaration

link to sheet | pdf

SDS Kuterlite

certifications | pdf

TM65 Embodied Carbon Declaration

label

value

label

ETIM class

label

Housing material

value

Brass

label

Surface protection

value

Untreated

label

System specific

value

No

label

Connection

value

Compression ring

label

Medium temperature (continuous)

value

20°C - 20°C

label

Medium temperature (continuous) (imperial)

value

68°F - 68°F

label

Max. operating pressure at 20 °C

value

12bar

label

Max. operating pressure at 20 °C (imperial)

value

174.05psi

label

With protective cap

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

67150

carbon footprint (A-C) embodied carbon

1.31kgCO2e

data source

TM65

item number

67151

carbon footprint (A-C) embodied carbon

1.05kgCO2e

data source

TM65
