group: K711
potable water
natural gas
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
20xR1 1/2"
dimensions
21x31x46 mm
weight
0.12 kg
packaging
bag (5 pce)
gtin
05022050043870
code
size
25xR3/4"
dimensions
26x37x53 mm
weight
0.17 kg
packaging
bag (5 pce)
gtin
05022050043887
code
size
32xR1"
dimensions
33x46x62 mm
weight
0.29 kg
packaging
bag (1 pce)
gtin
05022050670519
item

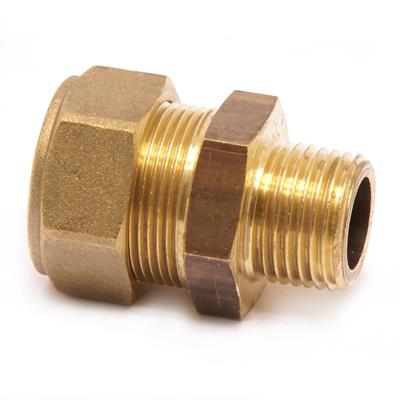

Kuterlite Male Coupling
item number with gtin
K711
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.29 kg
dimensions
33x46x62 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
straight
connection type
compression, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 10
sealing
Metal sealing
max operating pressure liquid
12 bar
min. medium temperature
20 °C
max medium temperature
20 °C
peak medium temperature
20 °C
product group
fittingen (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
VSH
series
Kuterlite K700
product type
K711
UNSPS
40172601
scip
8959546f-c4a2-4234-89bb-61813ff739d7
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 10
label
Material sealing
value
Metal-sealing
label
Medium temperature (continuous)
value
20°C - 20°C
label
Medium temperature (continuous) (imperial)
value
68°F - 68°F
label
Max. operating pressure at 20 °C
value
12bar
label
Max. operating pressure at 20 °C (imperial)
value
174.05psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
