Kuterlite Adaptor to imperial

group: K710IM

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

WRAS

WRAS

item number

size

item number

67043

size

20x1/2

item number

67044

size

25x3/4

item number

67045

size

32x1

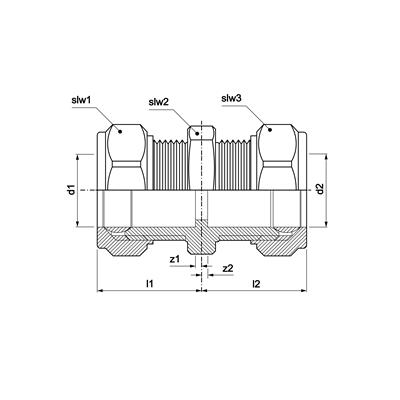

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

straight

connection type

compression

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K700

product type

K710IM

UNSPS

40172601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

12 bar

min. medium temperature

20 °C

max medium temperature

20 °C

peak medium temperature

20 °C

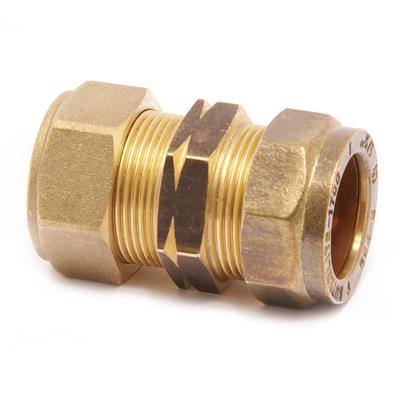

image for K710IM

image | jpg

K710IM

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite K700 WRAS

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Main colour fitting

value

Brass

label

Flange compression class (PN)

value

PN 10

label

Material sealing

value

Metal-sealing

label

Medium temperature (continuous)

value

20°C - 20°C

label

Medium temperature (continuous) (imperial)

value

68°F - 68°F

label

Max. operating pressure at 20 °C

value

12bar

label

Max. operating pressure at 20 °C (imperial)

value

174.05psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

67043

carbon footprint (A-C) embodied carbon

1.16kgCO2e

data source

TM65

item number

67044

carbon footprint (A-C) embodied carbon

1.77kgCO2e

data source

TM65

item number

67045

carbon footprint (A-C) embodied carbon

0.58kgCO2e

data source

TM65
