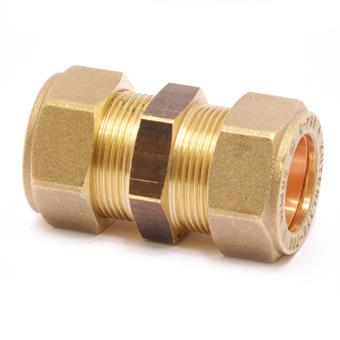

Kuterlite Straight Coupling

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

67004

size

20

dimensions

32x32x53 mm

weight

0.16 kg

packaging

bag (5 pce)

gtin

05022050043719

item number

67005

size

25

dimensions

37x37x63 mm

weight

0.25 kg

packaging

bag (5 pce)

gtin

05022050043726

item number

67006

size

32

dimensions

45x45x73 mm

weight

0.38 kg

packaging

bag (1 pce)

gtin

05022050670069

item number

67017

size

25x20

dimensions

31x37x58 mm

weight

0.22 kg

packaging

bag (5 pce)

gtin

05022050043764

item number

67020

size

32x25

dimensions

37x45x70 mm

weight

0.35 kg

packaging

bag (1 pce)

gtin

05022050670205

item number

size

d1

DN1

d2

DN2

item number

67004

size

20

d1

20.0

DN1

DN15

d2

20.0

DN2

DN15

item number

67005

size

25

d1

25.0

DN1

DN20

d2

25.0

DN2

DN20

item number

67006

size

32

d1

32.0

DN1

DN25

d2

32.0

DN2

DN25

item number

67017

size

25x20

d1

DN1

d2

DN2

item number

67020

size

32x25

d1

DN1

d2

DN2

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

straight

connection type

compression

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K700

product type

K710

UNSPS

40172601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

12 bar

min. medium temperature

20 °C

max medium temperature

20 °C

peak medium temperature

20 °C

image for K710

image | jpg

K710

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite K700 WRAS

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Main colour fitting

value

Brass

label

Flange compression class (PN)

value

PN 10

label

Material sealing

value

Metal-sealing

label

Medium temperature (continuous)

value

20°C - 20°C

label

Medium temperature (continuous) (imperial)

value

68°F - 68°F

label

Max. operating pressure at 20 °C

value

12bar

label

Max. operating pressure at 20 °C (imperial)

value

174.05psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

67004

carbon footprint (A-C) embodied carbon

1.1kgCO2e

data source

TM65

item number

67005

carbon footprint (A-C) embodied carbon

1.7kgCO2e

data source

TM65

item number

67006

carbon footprint (A-C) embodied carbon

1.57kgCO2e

data source

TM65

item number

67017

carbon footprint (A-C) embodied carbon

0.96kgCO2e

data source

TM65

item number

67020

carbon footprint (A-C) embodied carbon

0.66kgCO2e

data source

TM65
