Combined Shape
Combined Shape

products

Kuterlite Stop End

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

item number

size

dimensions

weight

packaging

gtin

item number

41486k

size

6

dimensions

10x10x20 mm

weight

0.02 kg

packaging

bag (5 pce)

gtin

05022050256386

item number

61490k

size

15

dimensions

23x25x26 mm

weight

0.05 kg

packaging

bag (5 pce)

gtin

05022050126689

item number

41487k

size

8

dimensions

13x17x20 mm

weight

0.02 kg

packaging

bag (5 pce)

gtin

05022050089939

item number

61492k

size

22

dimensions

29x31x33 mm

weight

0.1 kg

packaging

bag (5 pce)

gtin

05022050126764

item number

41488k

size

10

dimensions

18x18x22 mm

weight

0.03 kg

packaging

bag (5 pce)

gtin

05022050090089

item number

61493k

size

28

dimensions

30x36x40 mm

weight

0.15 kg

packaging

bag (5 pce)

gtin

05022050126849

item number

size

item number

41486k

size

6

item number

61490k

size

15

item number

41487k

size

8

item number

61492k

size

22

item number

41488k

size

10

item number

61493k

size

28

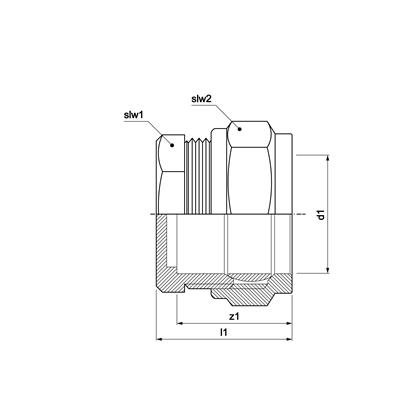

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

End coupling

connection type

compression

sealing

Brass, Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003023 Fitting with 1 connection

HS code

74122000

brand

VSH

series

Kuterlite K600

product type

K651

UNSPS

40172401

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

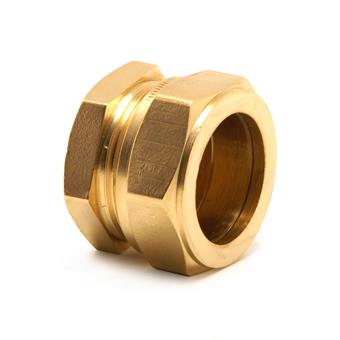

image for K651

image | jpg

K651

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite 600 NSF

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Main colour fitting

value

Brass

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

41486k

carbon footprint (A-C) embodied carbon

0.09kgCO2e

data source

TM65

item number

61490k

carbon footprint (A-C) embodied carbon

0.23kgCO2e

data source

TM65

item number

41487k

carbon footprint (A-C) embodied carbon

0.08kgCO2e

data source

TM65

item number

61492k

carbon footprint (A-C) embodied carbon

0.43kgCO2e

data source

TM65

item number

41488k

carbon footprint (A-C) embodied carbon

0.11kgCO2e

data source

TM65

item number

61493k

carbon footprint (A-C) embodied carbon

0.66kgCO2e

data source

TM65
