group: K639
potable water
heating
cooling
commercial building
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15x15xR3/4
dimensions
70x45x55 mm
weight
0.15 kg
packaging
-
gtin
05022050025555

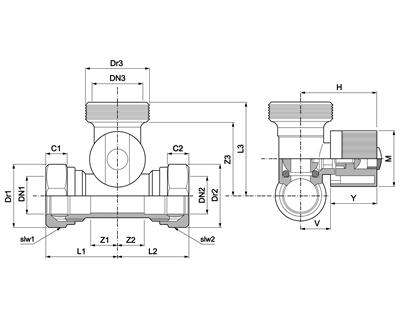

item number
size
d1
DN1
l1
z1
slw1
DN2
l2
slw2
M1
M2
Y
V
item number
44013size
15x15xR3/4
d1
15.0
DN1
DN15
l1
29
z1
11
slw1
25
DN2
3/4" (DN20)
l2
39
slw2
25
M1
12
M2
12
Y
18
V
11
color
brass
materials
brass (CW617N)
finishing
none
shape
(90º)
connection type
compression, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 20
sealing
Brass, Metal sealing
product group
valves (ball valves)
ETIM class
EC003268 Underground service valve
HS code
84818099
brand
VSH
series
Kuterlite Appliance Valve
product type
K639
UNSPS
40141607
scip
8959546f-c4a2-4234-89bb-61813ff739d7
max operating pressure liquid
20 bar
min. medium temperature
-10 °C
max medium temperature
65 °C
peak medium temperature
90 °C
label
value
label
ETIM class
label
Material
value
Brass
label
Surface protection
value
Untreated
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Connection 1
value
Compression ring
label
Nominal diameter connection 2
value
3/4 inch (20)
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Max. medium temperature (continuous)
value
65°C
label
Max. medium temperature (continuous) (imperial)
value
149°F
label
With drain possibility (connection)
value
No
label
With drain valve
value
No
