Appliance valve Angle Pattern

group: K638

The Kuterlite K638 is a chromed plated angle pattern appliance valve with a male tapered thread and a compression end. By using Kuterlite in your piping system you can install in easy to use heat free system. Kuterlite provides a piping system suitable for broad spectrum of applications across the domestic and commercial sectors,

  • No need for use of naked flames
  • Can be used on wet pipework
  • Joints can be dismounted without adversely affecting performance
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

WRAS

WRAS

item number

size

d1

DN1

l1

z1

slw1

DN2

l2

slw2

M1

M2

Y

V

angle

item number

44012

size

15xR3/4

d1

15.0

DN1

DN15

l1

32

z1

13

slw1

25

DN2

3/4" (DN20)

l2

30

slw2

25

M1

12

M2

12

Y

18

V

12

angle

90

item number

size

angle

15xR3/4

90

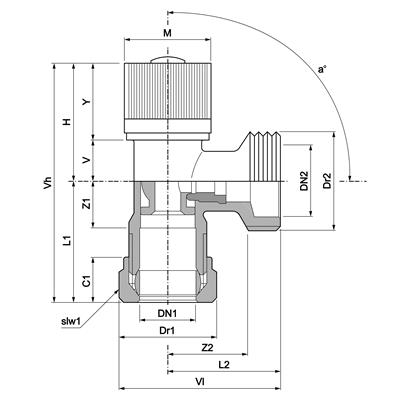

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

Elbow (90º)

connection type

compression, R - male thread gas conical (BSPT)

pressure rating (PN)

PN 20

sealing

Brass, Metal sealing

general

product group

valves (ball valves)

ETIM class

EC003268 Underground service valve

HS code

84818099

brand

VSH

series

Kuterlite Appliance Valve

product type

K638

UNSPS

40141607

scip

8959546f-c4a2-4234-89bb-61813ff739d7

label

value

label

Material

value

Brass

label

Surface protection

value

Untreated

label

Outer pipe diameter connection 1

value

15mm

label

Outer pipe diameter connection 1 (imperial)

value

0.59"

label

Connection 1

value

Compression ring

label

Nominal diameter connection 2

value

3/4 inch (20)

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

Max. medium temperature (continuous)

value

65°C

label

Max. medium temperature (continuous) (imperial)

value

149°F

label

With drain possibility (connection)

value

No

label

With drain valve

value

No
