group: K630W
potable water
heating
cooling
commercial building
BSI Kitemark
KIWA
item number
size

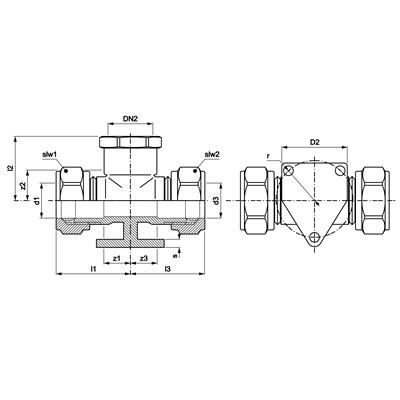

dimensions
weight
packaging
gtin
item number
size
15xG1/2"
dimensions
40x44x65 mm
weight
0.15 kg
packaging
bag (5 pce)
gtin
05022050261250
item number
size
item number
61398ksize
15xG1/2"
color
brass
materials
brass (CW617N)
finishing
none
shape

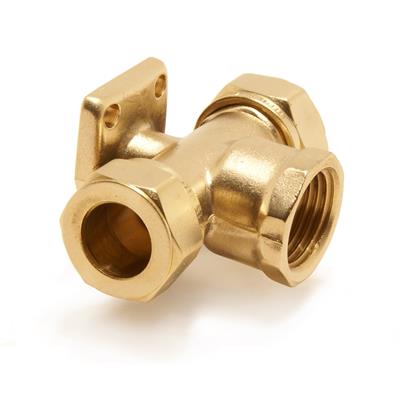

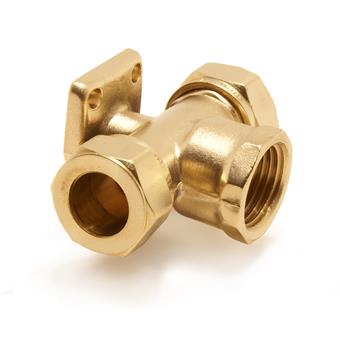

Wall plate (90º)
connection type
compression, Rc - female thread gas conical (BSPT)
sealing
Brass, Metal sealing
product group
fittings (demountable)
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
Kuterlite K600
product type
K630W
UNSPS
40174601
scip
8959546f-c4a2-4234-89bb-61813ff739d7
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn40Pb2 (CW617N)
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
item number
carbon footprint (A-C) embodied carbon
