group: K618EBCP
potable water
heating
cooling
commercial building
BSI Kitemark
KIWA
item number
size
dimensions
weight
packaging
gtin
item number
size
22x15x15
dimensions
25x52x65 mm
weight
0.16 kg
packaging
bag (1 pce)
gtin
05022050129956
item number
size
item number
61971ksize
22x15x15
color
chrome
materials
brass (CW617N)
finishing
chromed

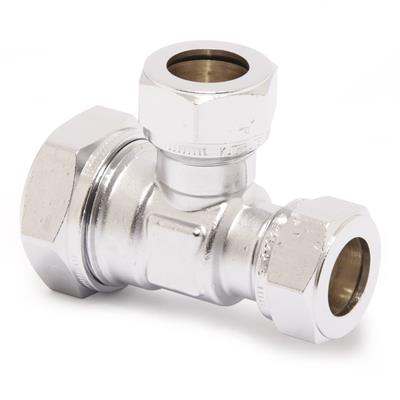

shape
T-piece
connection type
compression
sealing
Brass, Metal sealing
product group
fittings (demountable)
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
Kuterlite K600
product type
K618EBCP
UNSPS
40174601
scip
8959546f-c4a2-4234-89bb-61813ff739d7
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Chromium-plated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Chromium-plated
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 3
value
Chromium-plated
label
Model
value
T-piece
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
Compression ring
label
Main colour fitting
value
Chrome
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
