Kuterlite Tee Reduced Chrome Plated

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

item number

size

dimensions

weight

packaging

gtin

item number

61968k

size

22x22x15

dimensions

37x55x65 mm

weight

0.18 kg

packaging

bag (1 pce)

gtin

05022050129710

item number

size

item number

61968k

size

22x22x15

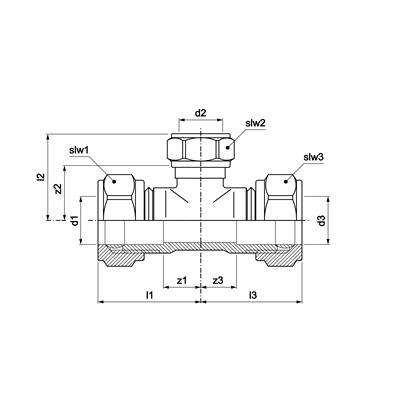

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

T-piece

connection type

compression

sealing

Brass, Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

HS code

74122000

brand

VSH

series

Kuterlite K600

product type

K618BCP

UNSPS

40174601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

20 bar

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

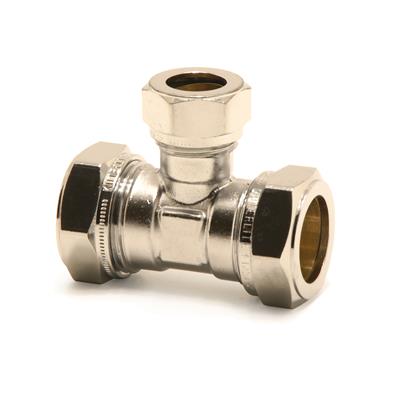

image for K618BCP

image | jpg

K618BCP

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite 600 NSF

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Chromium-plated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Chromium-plated

label

Material connection 3

value

Brass

label

Material quality connection 3

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 3

value

Chromium-plated

label

Model

value

T-piece

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Main colour fitting

value

Chrome

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

61968k

carbon footprint (A-C) embodied carbon

0.79kgCO2e

data source

TM65
