group: K618
potable water
heating
cooling
commercial building
BSI Kitemark
KIWA
item number
size
dimensions
weight
packaging
gtin
item number
size
6
dimensions
15x31x44 mm
weight
0.04 kg
packaging
bag (5 pce)
gtin
05022050072351
item number
size
15
dimensions
25x47x62 mm
weight
0.12 kg
packaging
bag (5 pce)
gtin
05022050124524
item number
size
8
dimensions
17x33x51 mm
weight
0.06 kg
packaging
bag (5 pce)
gtin
05022050072474
item number
size
22
dimensions
33x57x71 mm
weight
0.21 kg
packaging
bag (5 pce)
gtin
05022050124647
item number
size
10
dimensions
18x32x52 mm
weight
0.06 kg
packaging
bag (5 pce)
gtin
05022050072597
item number
size
28
dimensions
39x62x81 mm
weight
0.29 kg
packaging
bag (5 pce)
gtin
05022050124760
color
brass
materials
brass (CW617N)
finishing
none
shape

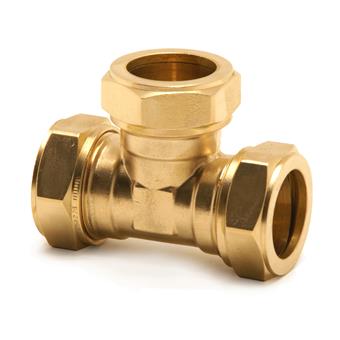

T-piece (90º)
connection type
compression
sealing
Brass, Metal sealing
product group
fittings (demountable)
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
Kuterlite K600
product type
K618
UNSPS
40174601
scip
8959546f-c4a2-4234-89bb-61813ff739d7
max operating pressure liquid
value depends on the item view items
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn40Pb2 (CW617N)
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
Compression ring
label
Main colour fitting
value
Brass
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
