Kuterlite Backplate Elbow Chrome Plated

group: K617WCP

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

KIWA

KIWA

item number

size

item number

61965K

size

15xRp1/2"

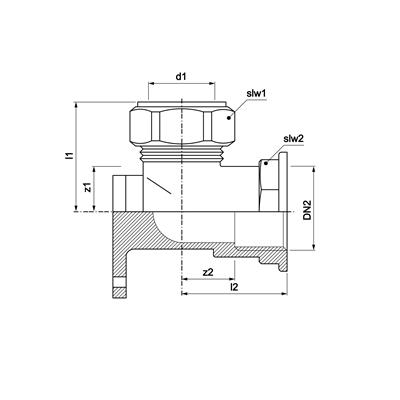

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

Wall plate

connection type

compression, Rc - female thread gas conical (BSPT)

sealing

Brass, Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003099 Wall plate

HS code

74122000

brand

VSH

series

Kuterlite K600

product type

K617WCP

UNSPS

40172801

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

20 bar

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

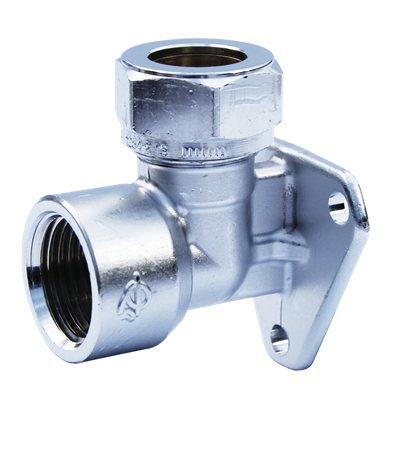

image for K617WCP

image | png

K617WCP

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite 600 NSF

link to sheet | pdf

SDS Kuterlite

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection

value

Chromium-plated

label

System specific

value

No

label

Connection

value

Compression ring

label

Length from wall plate

value

45mm

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

With protective cap

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

61965K

carbon footprint (A-C) embodied carbon

0.54kgCO2e

data source

TM65
