group: K617W
potable water
heating
cooling
commercial building
KIWA
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
15xRp1/2"
dimensions
27x45x55 mm
weight
0.12 kg
packaging
bag (5 pce)
gtin
05022050124272
code
size
15xRp3/4"
dimensions
31x50x60 mm
weight
0.16 kg
packaging
bag (5 pce)
gtin
05022050259554
code
size
22xRp1/2"
dimensions
61x56x70 mm
weight
0.3 kg
packaging
bag (5 pce)
gtin
05022050259721
item

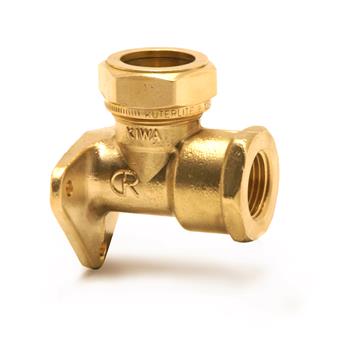

Kuterlite Backplate Elbow
item number with gtin
K617W
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.3 kg
dimensions
61x56x70 mm
color
brass
materials
brass (CW617N)
finishing
none
shape
Wall plate
connection type
compression, Rc - female thread gas conical (BSPT)
pressure rating (PN)
PN 20
sealing
Brass, Metal sealing
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
product group
fittingen (demountable)
ETIM class
EC003099 Wall plateHS code
74122000
brand
VSH
series
Kuterlite K600
product type
K617W
UNSPS
40172801
scip
8959546f-c4a2-4234-89bb-61813ff739d7
label
value
label
etim-class
value
EC003099 Wall platelabel
Housing material
value
Brass
label
Material quality
value
CuZn40Pb2 (CW617N)
label
Surface protection
value
Untreated
label
System specific
value
No
label
Connection
value
Compression ring
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With protective cap
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
