group: K617
potable water
heating
cooling
commercial building
BSI Kitemark
KIWA
item number
size
dimensions
weight
packaging
gtin
item number
size
15xRp1/2"
dimensions
25x36x48 mm
weight
0.09 kg
packaging
bag (5 pce)
gtin
05022050123855
item number
size
22xRp1/2"
dimensions
32x45x50 mm
weight
0.11 kg
packaging
bag (5 pce)
gtin
05022050123978
item number
size
22xRp3/4"
dimensions
33x48x59 mm
weight
0.14 kg
packaging
bag (5 pce)
gtin
05022050124098
item number
size
22xRp1"
dimensions
33x45x80 mm
weight
0.17 kg
packaging
bag (5 pce)
gtin
05022050124159
item number
size
28xRp1"
dimensions
40x45x80 mm
weight
0.23 kg
packaging
bag (5 pce)
gtin
05022050124210
color
brass
materials
brass (CW617N)
finishing
none

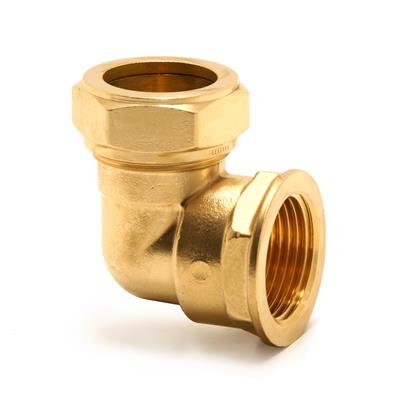

shape
Elbow
connection type
compression, Rc - female thread gas conical (BSPT)
sealing
Brass, Metal sealing
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Kuterlite K600
product type
K617
UNSPS
40172801
scip
8959546f-c4a2-4234-89bb-61813ff739d7
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
