group: K616CP
potable water
heating
cooling
commercial building
KIWA
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
15xR1 1/2"
dimensions
24x42x48 mm
weight
0.08 kg
packaging
bag (1 pce)
gtin
05022050129123
code
size
22xR3/4"
dimensions
35x50x60 mm
weight
0.16 kg
packaging
bag (1 pce)
gtin
05022050129185
item

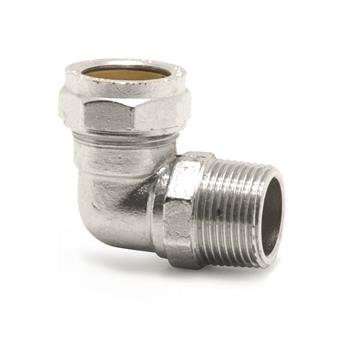

Kuterlite Male Elbow 90° Chrome Plated
item number with gtin
K616CP
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.16 kg
dimensions
35x50x60 mm
color
chrome
materials
brass (CW617N)
finishing
chromed
shape
Elbow
connection type
compression, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 20
sealing
Brass, Metal sealing
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
product group
fittingen (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
VSH
series
Kuterlite K600
product type
K616CP
UNSPS
40172801
scip
8959546f-c4a2-4234-89bb-61813ff739d7
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Chromium-plated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Chromium-plated
label
Shape
value
Bend
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Chrome
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
