Kuterlite Elbow 90°

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

item number

size

dimensions

weight

packaging

gtin

item number

41118k

size

6

dimensions

15x31x31 mm

weight

0.03 kg

packaging

-

gtin

05022050066855

item number

61122k

size

15

dimensions

25x25x65 mm

weight

0.09 kg

packaging

bag (5 pce)

gtin

05022050122070

item number

41119k

size

8

dimensions

17x31x31 mm

weight

0.03 kg

packaging

bag (5 pce)

gtin

05022050066992

item number

61124k

size

22

dimensions

33x54x54 mm

weight

0.15 kg

packaging

bag (5 pce)

gtin

05022050122193

item number

41120k

size

10

dimensions

18x35x35 mm

weight

0.04 kg

packaging

bag (5 pce)

gtin

05022050067135

item number

61138k

size

15x10

dimensions

24x39x41 mm

weight

0.08 kg

packaging

bag (5 pce)

gtin

05022050258120

item number

61139k

size

15x12

dimensions

8x80x80 mm

weight

0.08 kg

packaging

-

gtin

05022050258304

item number

61131k

size

22x15

dimensions

33x48x50 mm

weight

0.12 kg

packaging

-

gtin

05022050122445

item number

61125k

size

28

dimensions

40x63x63 mm

weight

0.24 kg

packaging

-

gtin

05022050122322

item number

61140k

size

28x22

dimensions

40x60x65 mm

weight

0.24 kg

packaging

bag (5 pce)

gtin

05022050122742

item number

size

item number

41118k

size

6

item number

61122k

size

15

item number

41119k

size

8

item number

61124k

size

22

item number

41120k

size

10

item number

61138k

size

15x10

item number

61139k

size

15x12

item number

61131k

size

22x15

item number

61125k

size

28

item number

61140k

size

28x22

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

Elbow

connection type

compression

sealing

Brass, Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K600

product type

K615

UNSPS

40172801

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

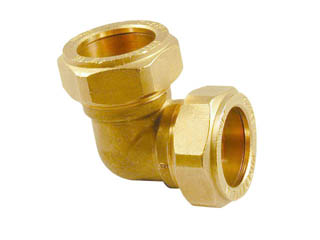

image for K615

image | jpg

K615

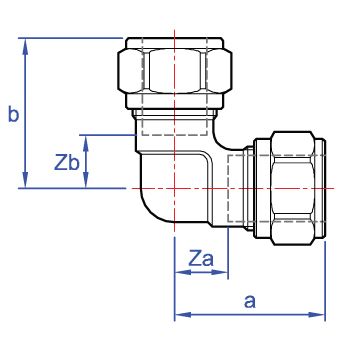

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite 600 NSF

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Main colour fitting

value

Brass

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

41118k

carbon footprint (A-C) embodied carbon

0.13kgCO2e

data source

TM65

item number

61122k

carbon footprint (A-C) embodied carbon

0.39kgCO2e

data source

TM65

item number

41119k

carbon footprint (A-C) embodied carbon

0.14kgCO2e

data source

TM65

item number

61124k

carbon footprint (A-C) embodied carbon

0.34kgCO2e

data source

TM65

item number

41120k

carbon footprint (A-C) embodied carbon

0.19kgCO2e

data source

TM65

item number

61138k

carbon footprint (A-C) embodied carbon

0.66kgCO2e

data source

TM65

item number

61139k

carbon footprint (A-C) embodied carbon

1.05kgCO2e

data source

TM65

item number

61131k

carbon footprint (A-C) embodied carbon

0.36kgCO2e

data source

TM65

item number

61125k

carbon footprint (A-C) embodied carbon

0.53kgCO2e

data source

TM65

item number

61140k

carbon footprint (A-C) embodied carbon

1.05kgCO2e

data source

TM65
