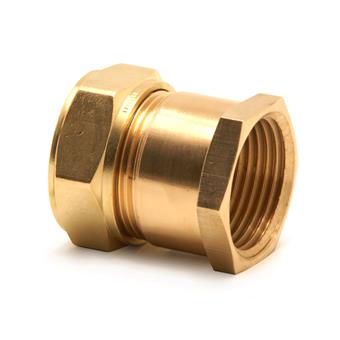

Product Image for Kuterlite Female Coupling

Product Image for Kuterlite Female Coupling

group: K612

The Kuterlite K612 is a female coupling with a compression end and female parallel thread. By using Kuterlite in your piping system you can install in easy to use heat free system. Kuterlite provides a piping system suitable for broad spectrum of applications across the domestic and commercial sectors,

No need for use of naked flames

Can be used on wet pipework

Joints can be dismounted without adversely affecting performance

Provided with all relevant approvals

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

potable water

heating

cooling

show all

show less

commercial building

show all

show less

KIWA

BSI Kitemark KM 15121

show all

show less

code

size

dimensions

weight

packaging

gtin

code

size

8xRp1/4"

dimensions

16x17x30 mm

weight

0.03 kg

packaging

bag (5 pce)

gtin

05022050064042

code

size

15xRp1/2"

dimensions

25x25x38 mm

weight

0.07 kg

packaging

bag (5 pce)

gtin

05022050121646

code

size

10xRp1/2"

dimensions

18x25x36 mm

weight

0.06 kg

packaging

bag (5 pce)

gtin

05022050063830

code

size

22xRp3/4"

dimensions

30x30x40 mm

weight

0.11 kg

packaging

bag (5 pce)

gtin

05022050121707

code

size

10xRp3/8"

dimensions

18x21x33 mm

weight

0.04 kg

packaging

bag (5 pce)

gtin

05022050064288

code

size

22xRp1"

dimensions

33x40x46 mm

weight

0.15 kg

packaging

bag (5 pce)

gtin

05022050121769

code

size

28xRp3/4"

dimensions

31x40x46 mm

weight

0.16 kg

packaging

bag (5 pce)

gtin

05022050121820

code

size

28xRp1"

dimensions

38x40x46 mm

weight

0.16 kg

packaging

bag (5 pce)

gtin

05022050121882

code

size

code

size

8xRp1/4"

code

size

15xRp1/2"

code

size

10xRp1/2"

code

size

22xRp3/4"

code

size

10xRp3/8"

code

size

22xRp1"

code

size

28xRp3/4"

code

size

28xRp1"

product info

item

Kuterlite Female Coupling

item number with gtin

K612

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

weight

0.16 kg

dimensions

38x40x46 mm

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

straight

connection type

compression, Rc - female thread gas conical (BSPT)

sealing

Brass, Metal sealing

technical

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

general

product group

fittingen (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K600

product type

K612

UNSPS

40171701

scip

8959546f-c4a2-4234-89bb-61813ff739d7

image for K612

image | jpg

K612

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite 600 NSF

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

certifications | pdf

Reach declaration

link to sheet | pdf

SDS Kuterlite

certifications | pdf

TM65 Embodied Carbon Declaration

label

value

label

etim-class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Brass

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

code

carbon footprint (A-C) embodied carbon

data source

code

carbon footprint (A-C) embodied carbon

0.12kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

0.32kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

0.19kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

0.48kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

0.25kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

0.68kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

0.71kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

0.72kgCO2e

data source

TM65
