products

Kuterlite Long Tank Coupling

group: K611LB

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

item number

size

item number

61073K

size

15xG1/2"

item number

61074K

size

22xG3/4"

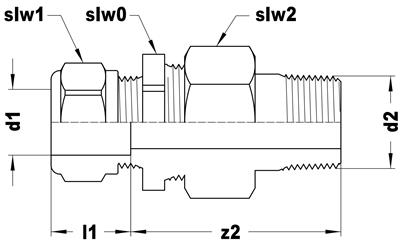

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

T-piece

connection type

compression, clamp

sealing

Brass, Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K600

product type

K611LB

UNSPS

40171701

scip

8959546f-c4a2-4234-89bb-61813ff739d7

technical

max operating pressure liquid

20 bar

min. medium temperature

-15 °C

max medium temperature

90 °C

peak medium temperature

120 °C

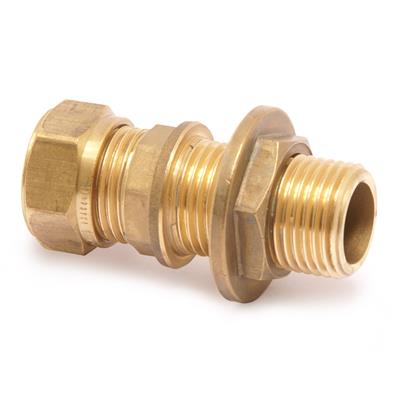

image for K611LB

image | jpg

K611LB

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Pegler Kuterlite 600 NSF

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Clamp connection

label

Main colour fitting

value

Brass

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

61073K

carbon footprint (A-C) embodied carbon

0.5kgCO2e

data source

TM65

item number

61074K

carbon footprint (A-C) embodied carbon

0.91kgCO2e

data source

TM65
