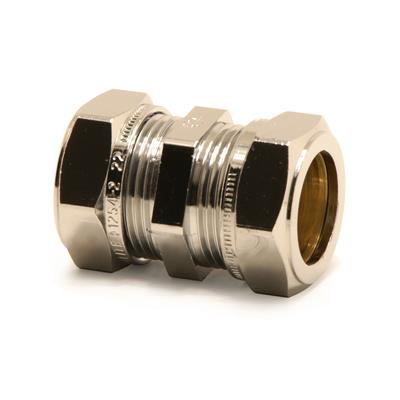

group: K610CP
potable water
heating
cooling
commercial building
BSI Kitemark
KIWA
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
25x25x44 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
05022050127990
item number
size
22
dimensions
33x33x50 mm
weight
0.14 kg
packaging
bag (1 pce)
gtin
05022050128041
item number
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
color
chrome
materials
brass (CW617N)
finishing
chromed
shape
straight
connection type
compression
sealing
Brass, Metal sealing
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Kuterlite K600
product type
K610CP
UNSPS
40172601
scip
8959546f-c4a2-4234-89bb-61813ff739d7
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Chromium-plated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Chromium-plated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
Compression ring
label
Main colour fitting
value
Chrome
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
item number
carbon footprint (A-C) embodied carbon
